The order just isn’t together with the above Equipment, You’ll be able to Click on the image to purchase .

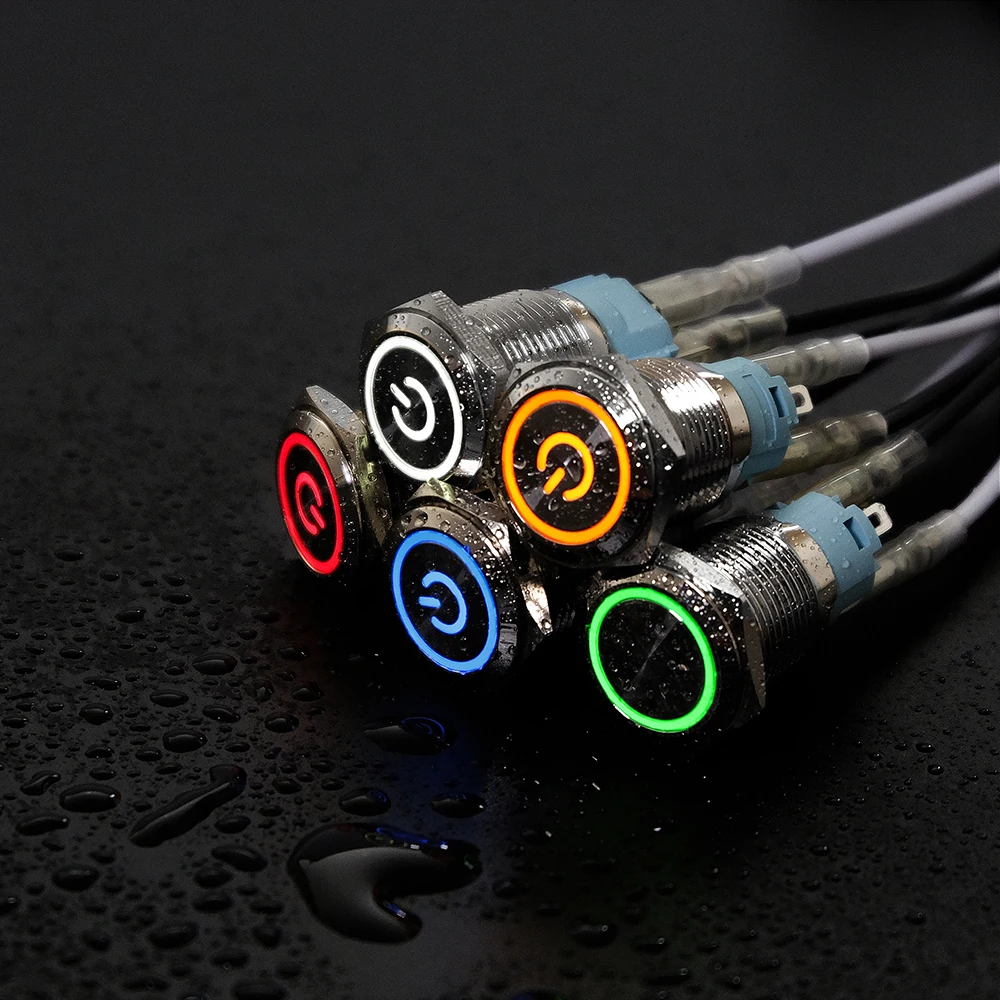

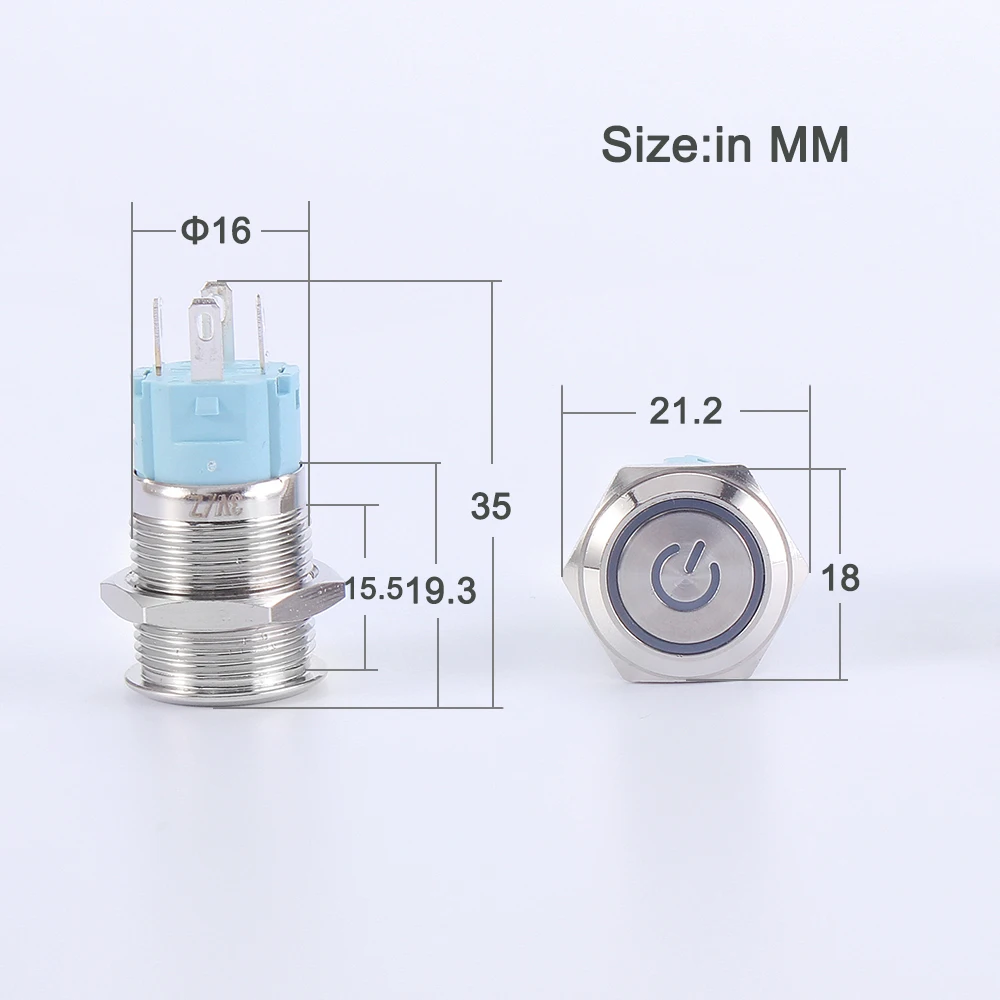

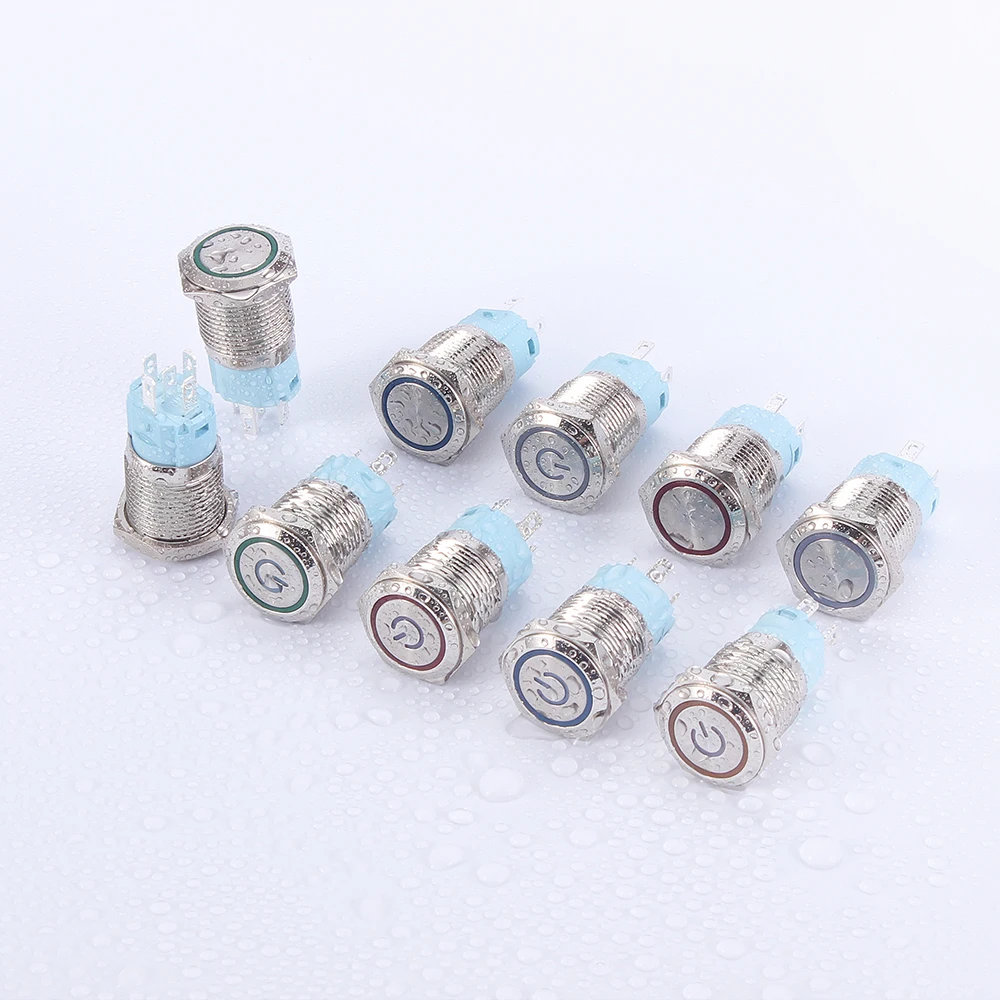

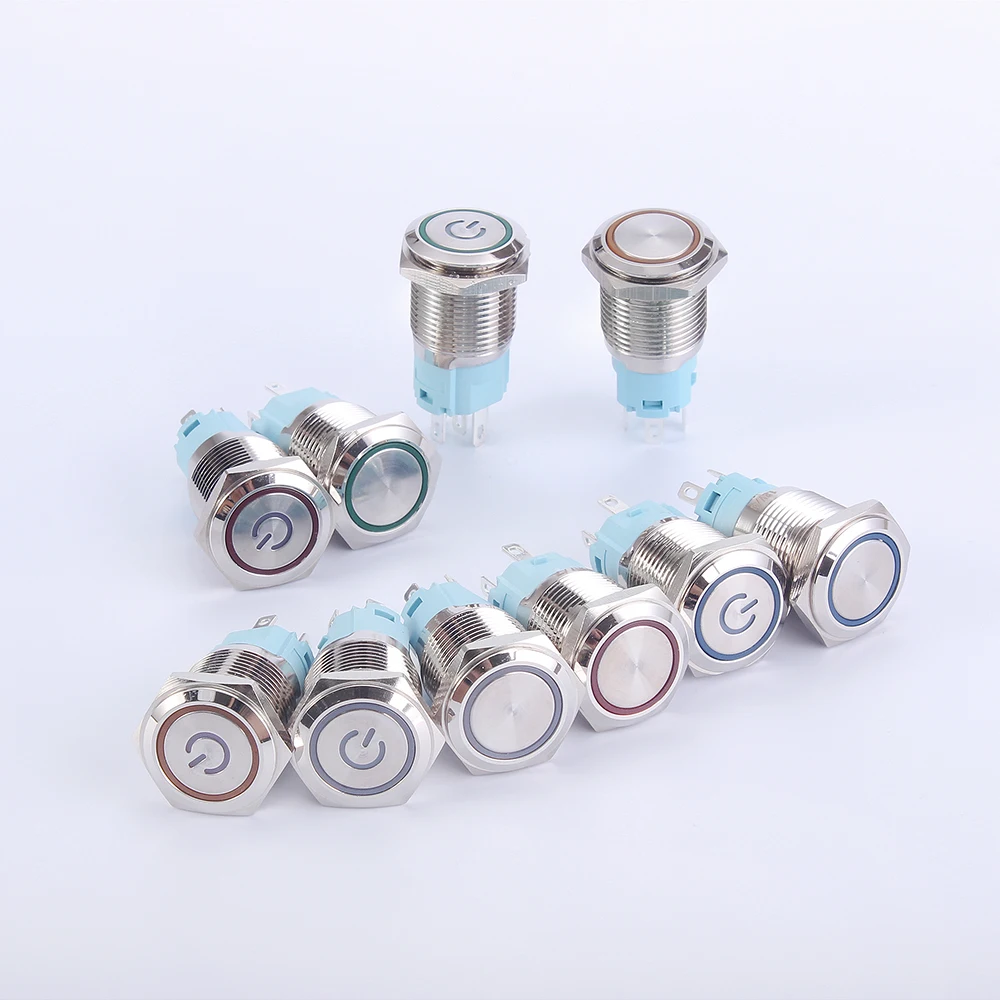

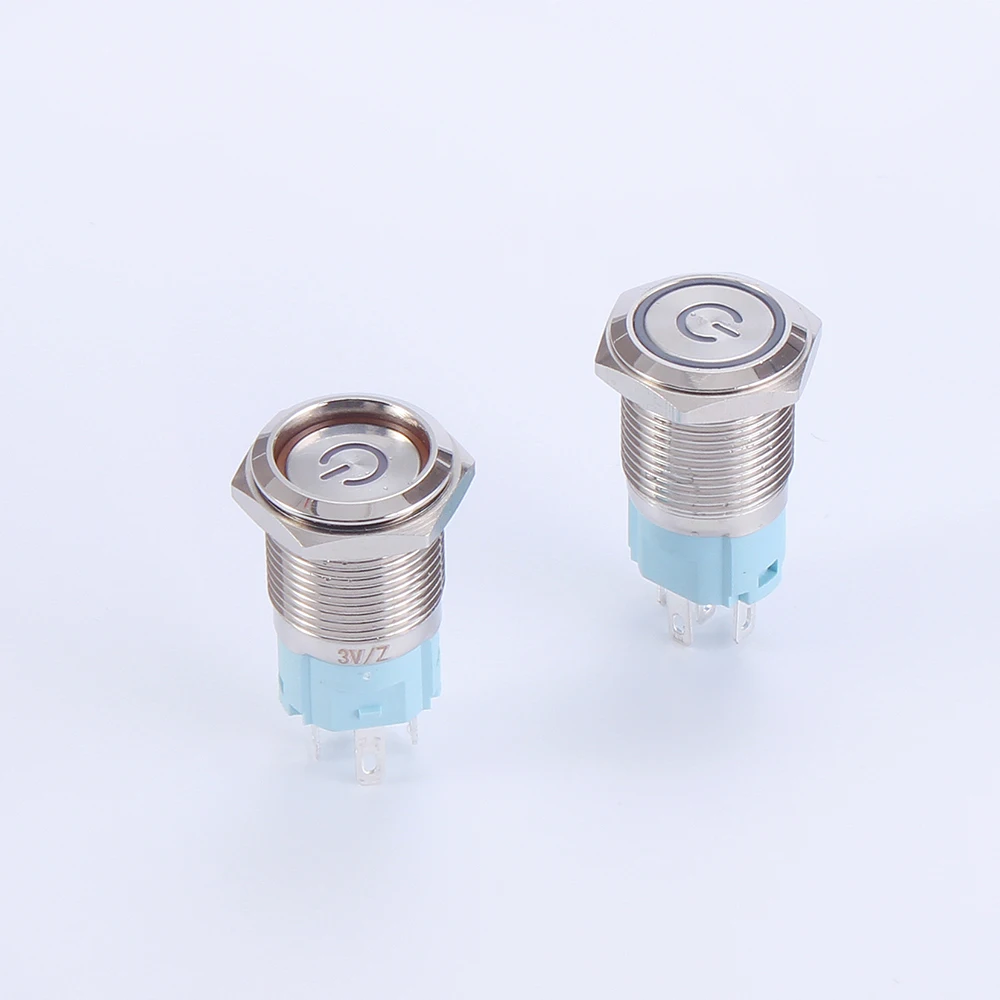

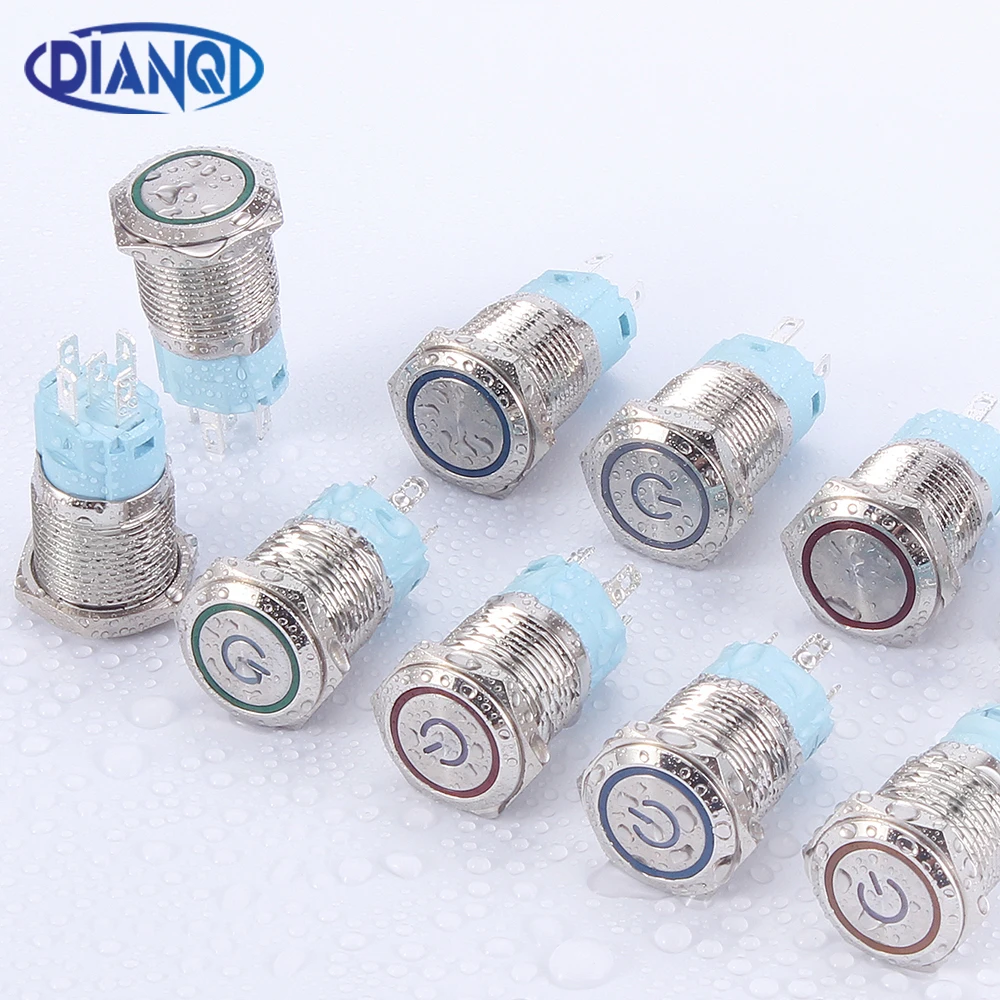

Specification: 16mm metallic push button swap energy button Waterproof Flat round button LED gentle self-lock self-reset button 1NO1NC 6V 12V
Brand Name
DIANQI
Current
1A
Features
self-recovery and self-lock type
Certification
CCC
Item Type
Switches
Warranty
1 year
Model Number
16mm metal push button
Material :
Brass nickel plating or Brass chrome
Customizable Material :
Stainless steel

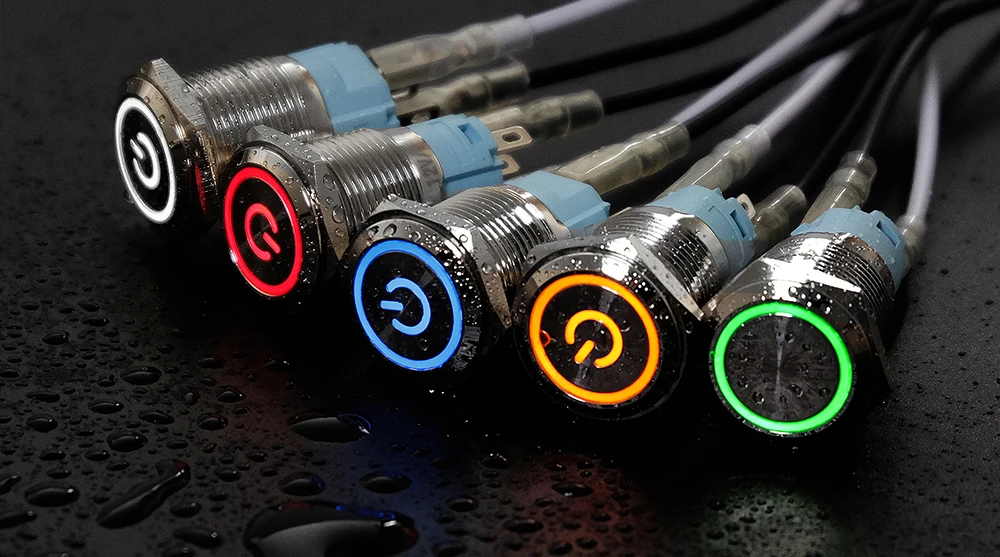

LED Colors
Red Yellow Blue White Green
Customizable LED Colors
Purple Orange
LED Voltage
Please choose the right Voltage in option
Using
Car PC machine Device buttons
Level
IP65
Rating switch
3A / 250VAC

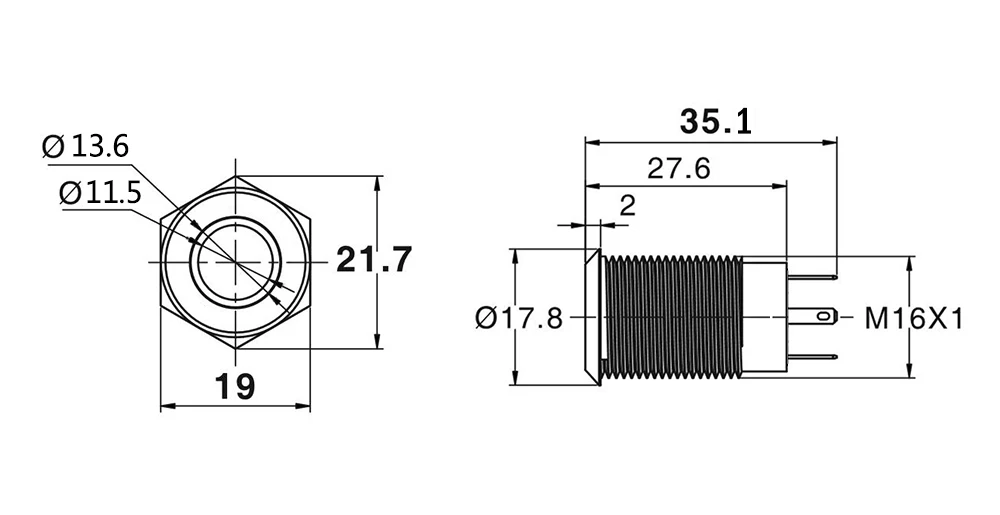

Opening diameter :
16mm
Switch type

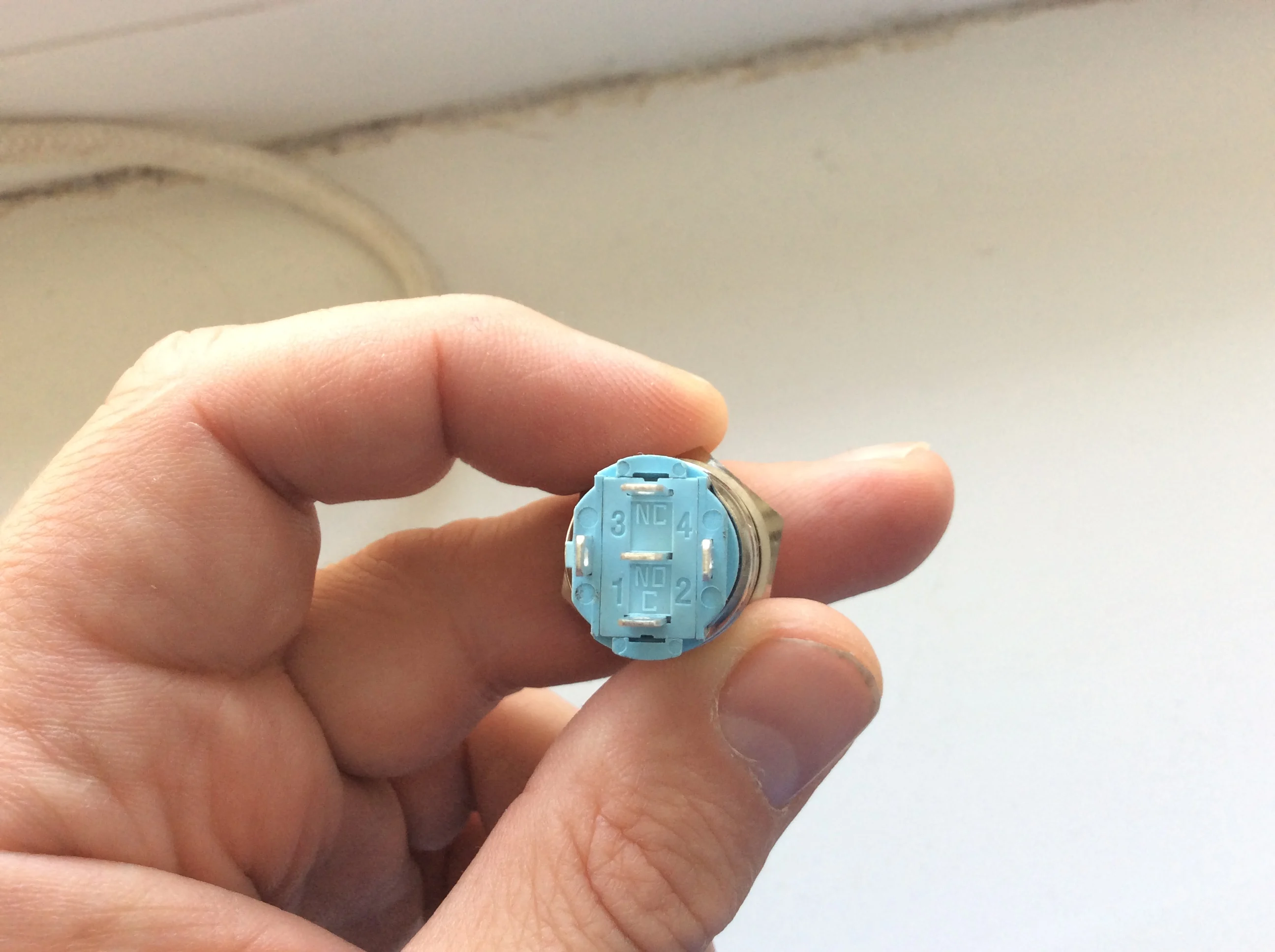

NO (Normally Open) ; NC ((Normally Closed )
Customization
Yes, please leave a message to us
20 reviews for 16mm metallic push button swap energy button Waterproof Flat round button LED gentle self-lock self-reset button 1NO1NC 6V 12V
5.0out of 5
★★★★★
★★★★★
20
★★★★★
0
★★★★★
0
★★★★★
0
★★★★★
0
Write a review
Show allMost HelpfulHighest RatingLowest Rating
★★★★★
K***o –
The seller is good, sends quickly, what is ordered. I already ordered it twice. Ordered a button with fixing, on the backlight voltage of 220 V. Go to my channel on YouTube, there are reviews of my purchases and homemade, my channel is called “Konstantin pavljuchenko” with the Avatar “you come in if anything. I have video on the channel to connect such a button. Come in, see if anyone has trouble connecting.
Color: blue light symbol Size: Latching fixation Voltage: 220V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
A***v –
While walked put on a regular tumbler. It will be lying now.
Color: blue light symbol Size: Latching fixation Voltage: 12V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
r***r –

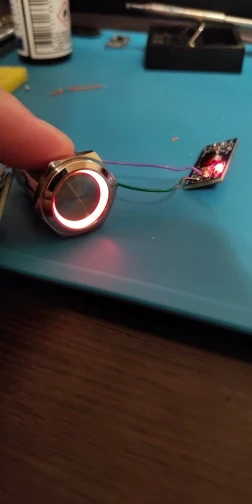

Button fire, when fixing glows, the quality is normal, I recommend
Color: whitle light symbol Size: Latching fixation Voltage: 12V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
D***v –
Very cool buttons. Look just awesome. Naturally, completely working. So there’s nothing to complain about. All 5 stars. Connected by schemes in the description. Press clearly with a click. The move of the button is smooth. In general, I advise.
Color: red light Size: Latching fixation Voltage: 5V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
A***r –
Moscow reached two weeks. Visually, everything is whole, I did not check in the work.
Color: green light symbol Size: Momentary Reset Voltage: 24V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
A***v –
Cool power switch smoothly push light too bright enough maximum current 12A
Color: blue light symbol Size: Latching fixation Voltage: 12V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
V***a –
Long ago wanted to order such buttons. Come fast. In the work I will check later and if what add the review.
Color: blue light Size: Latching fixation Voltage: 12V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
V***v –

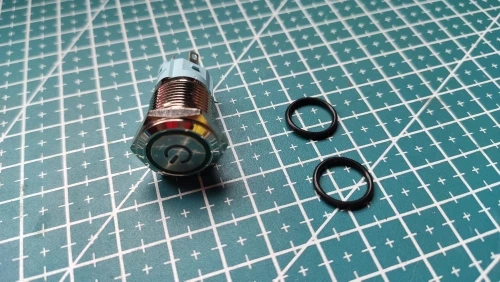

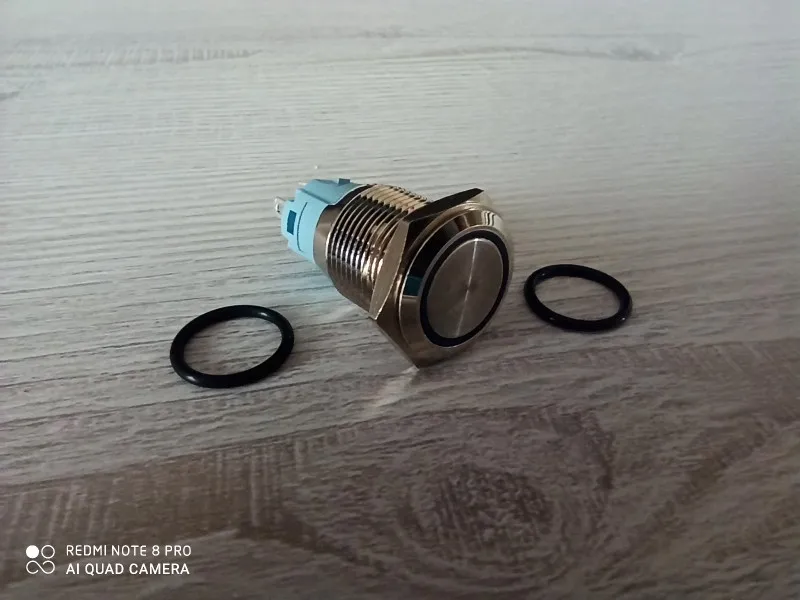

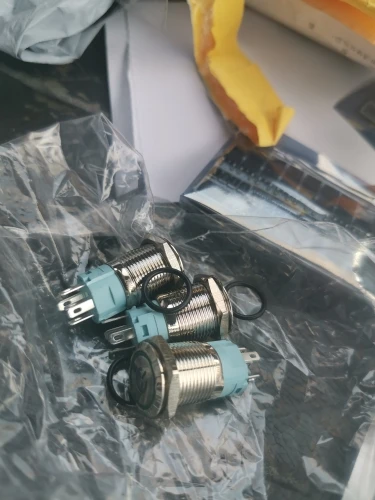

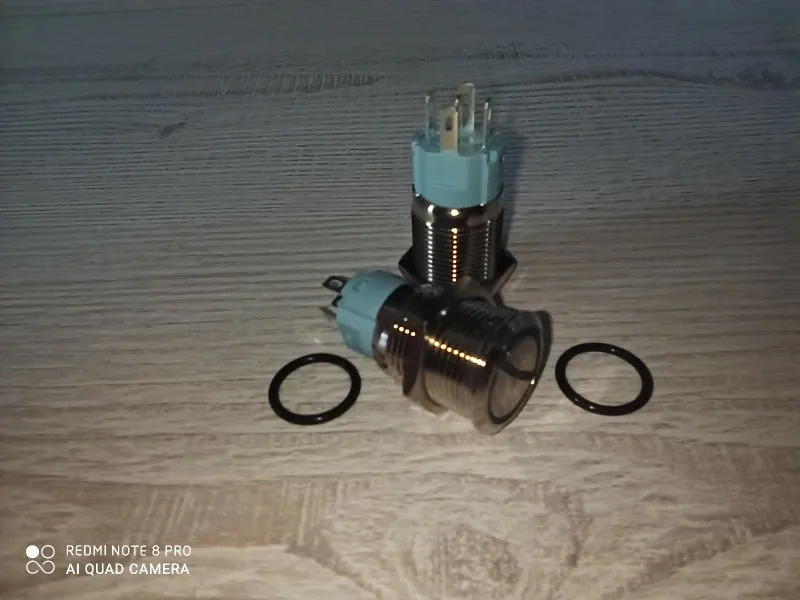

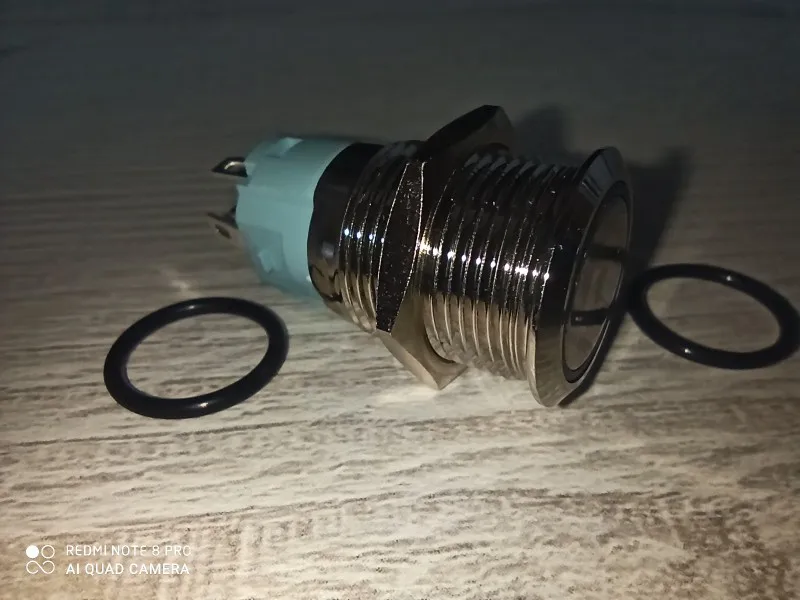

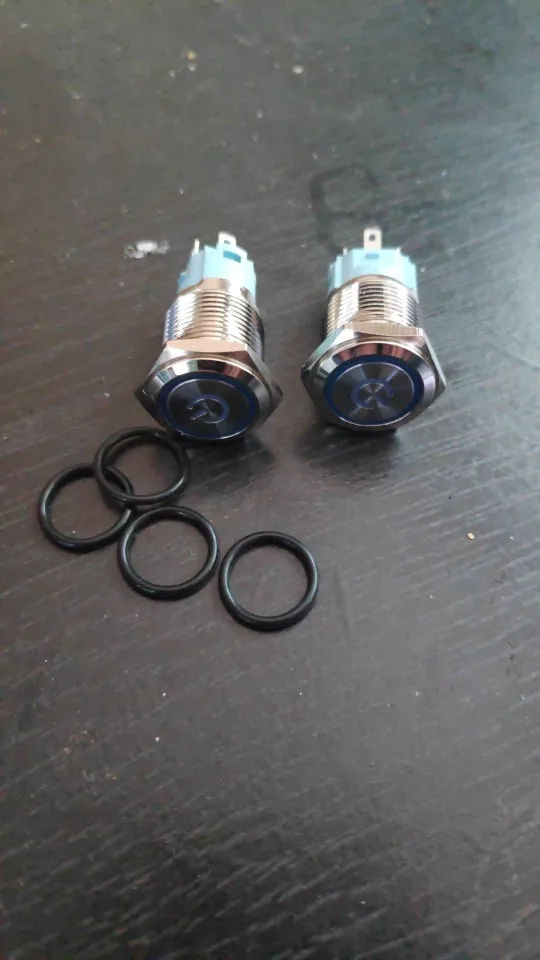

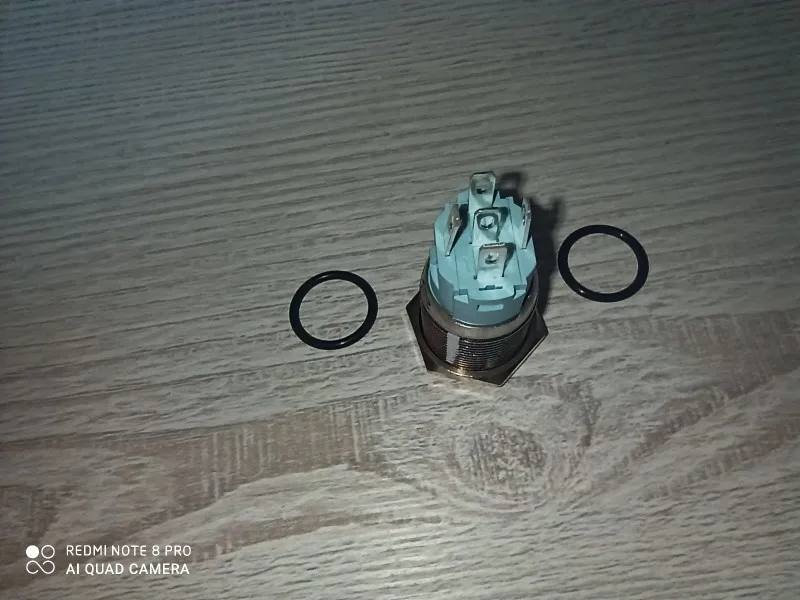

In appearance very qualitatively done. In the kit there are rubber seals.
Color: green light symbol Size: Latching fixation Voltage: 24V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
A***v –
What to say, it’s all right. and the seller is responsive, slightly mistaken when ordering, wrote, put what you need. I order the second time. Everything worked out.
Color: blue light Size: Latching fixation Voltage: 220V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
G***v –

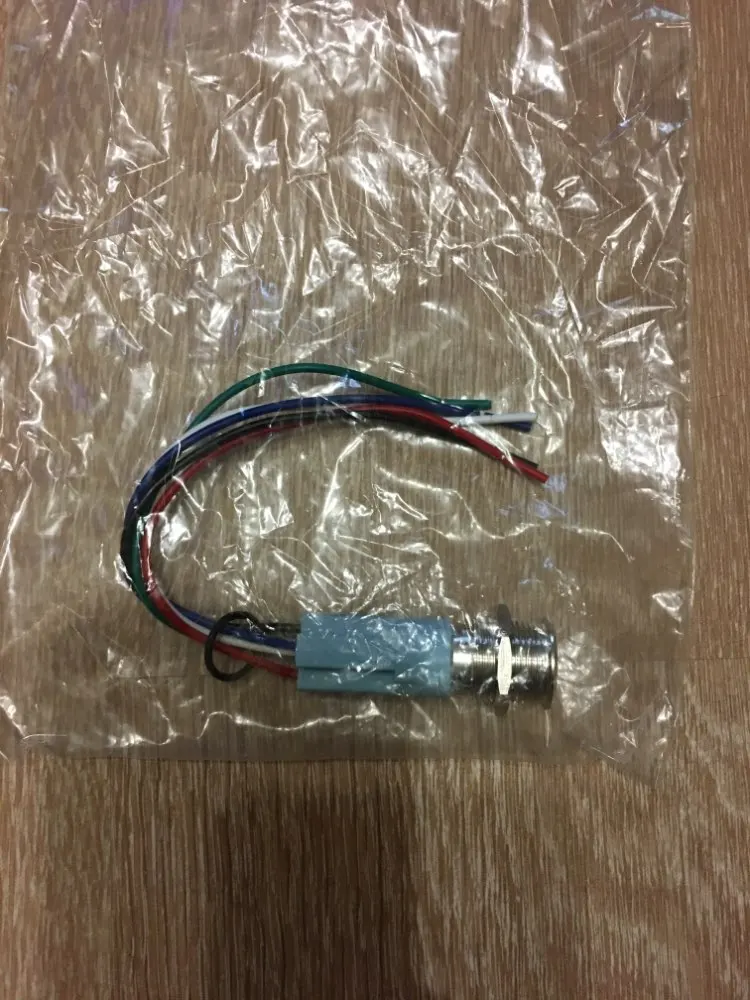

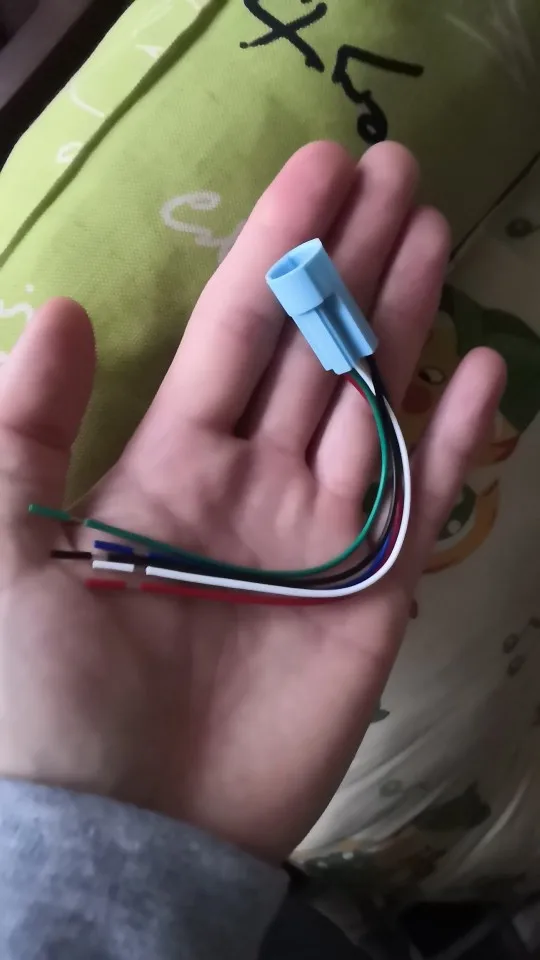

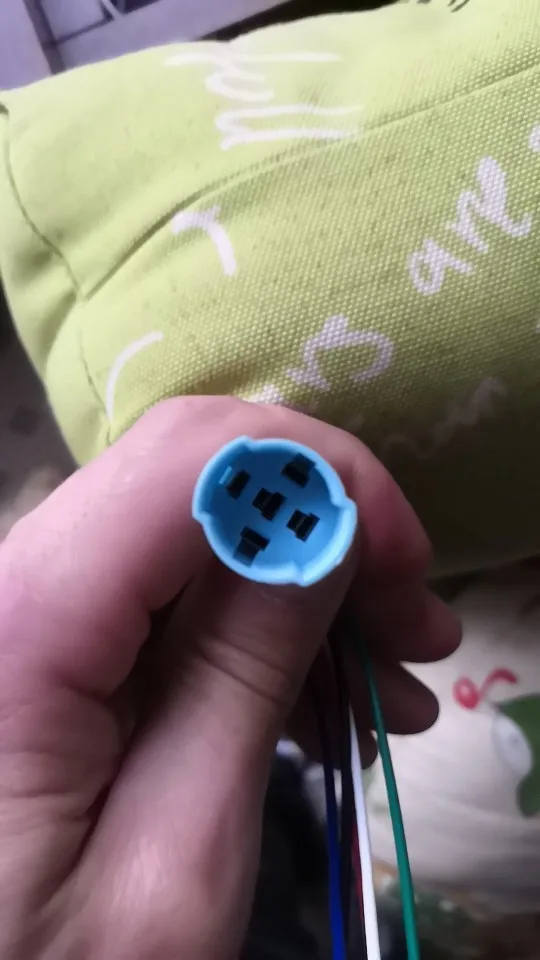

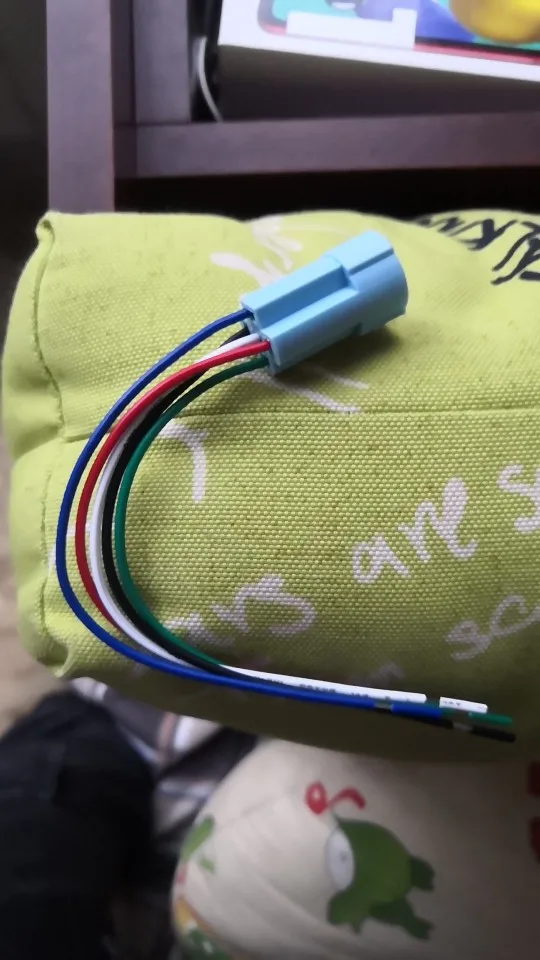

Excellent button and connector (it’s a pity that there is no uncompressed kit, I will have to build up the wires). In the off state, flush with a panel. Ring included. I order not the first time, I will still
Color: red light symbol Size: Latching fixation Voltage: 12V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
R***r –
Delivery is not fast but also not slow 3 weeks from Hong Kong. On the reply part of the pins are signed, the button itself is quality, wouldn’t say 5 out of 5 for 4 somewhere, one button ideally, the other is slightly luftitis in pressed state.
Color: green light symbol Size: Latching fixation Voltage: 220V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
O***v –
Button with fixation and illumination. Quality is good, I recommend the seller.
Color: green light Size: Latching fixation Voltage: 12V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
V*** –
Thank you very much for the fast shipment! Quality excellent seller recommend!
Color: blue light symbol Size: Momentary Reset Voltage: 12V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
D***v –
неплохая кнопка, нажатие мягкое, фиксация уверенная, заказывал на 24v – подсветка загорается даже от 3в, приехала быстро. по минусам ничего сказать не могу пока не выявились.
Color: whitle light symbol Voltage: 24V Size: Latching fixation
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
Y***h –
в Беларусь товар пришел за 62 дня. Трек не отслеживался. соответствует описанию. проверил- работает.
Color: blue light Size: Latching fixation Voltage: 12V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
A***v –
Delivery to Tyumen without tracking 2 months. Quality button with illumination. When the position is turned on, it is recessed in the case. I recommend to purchase.
Color: green light symbol Size: Latching fixation Voltage: 24V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
E***y –
Delivery month quality is excellent
Color: green light Size: Latching fixation Voltage: 12V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
O***k –
It came, it came, the quality is very good!
Color: ONLY a socket Size: Latching fixation Voltage: 12V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
a***n –
Super. Goods quality, seller well done!
Everything is clear, prompt, fast!
I order not the first time.
Shop and seller recommend. !!!!

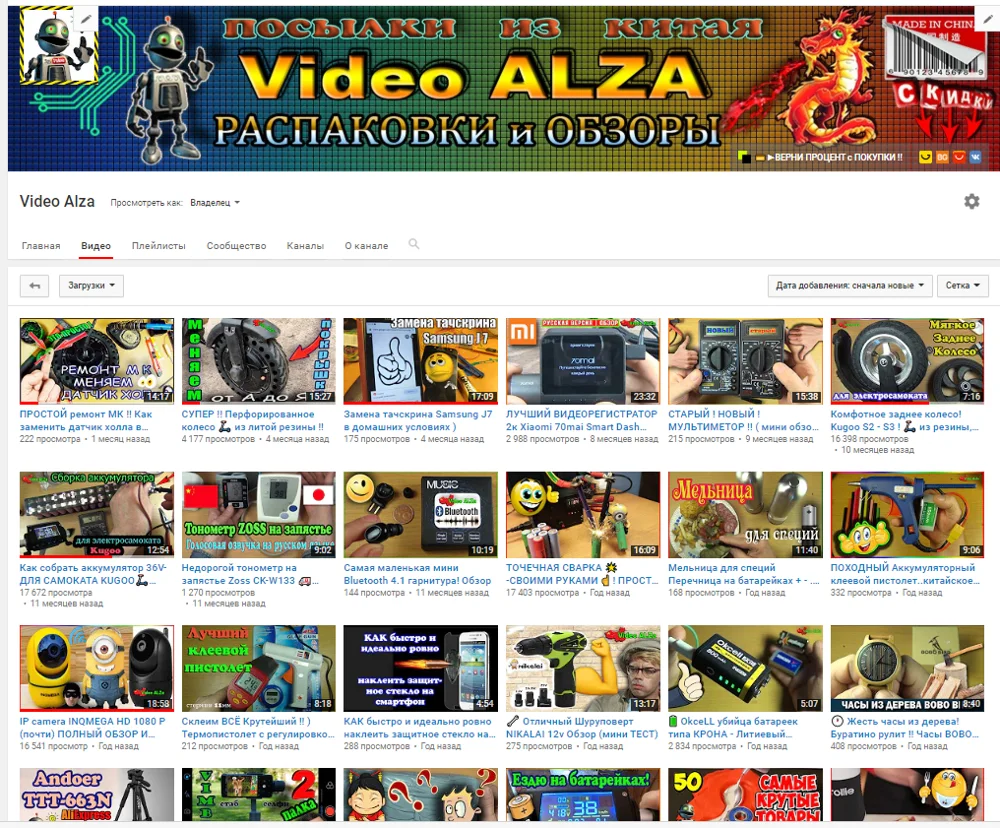

See more YouTube reviews channel-“video Alza”
Also on the channel there are many reviews of goods with AliExpress, and many more interesting!
Via QR code on photo ▼
I invite everyone to visit the YouTube channel-“video Alza”
Color: blue light symbol Size: Latching fixation Voltage: 220V
Helpful(0)Unhelpful(0)You have already voted this
★★★★★
R***o –
Everything has arrived in perfect condition and quickly. The hexagon is a thread
Color: blue light Size: Latching fixation Voltage: 5V
