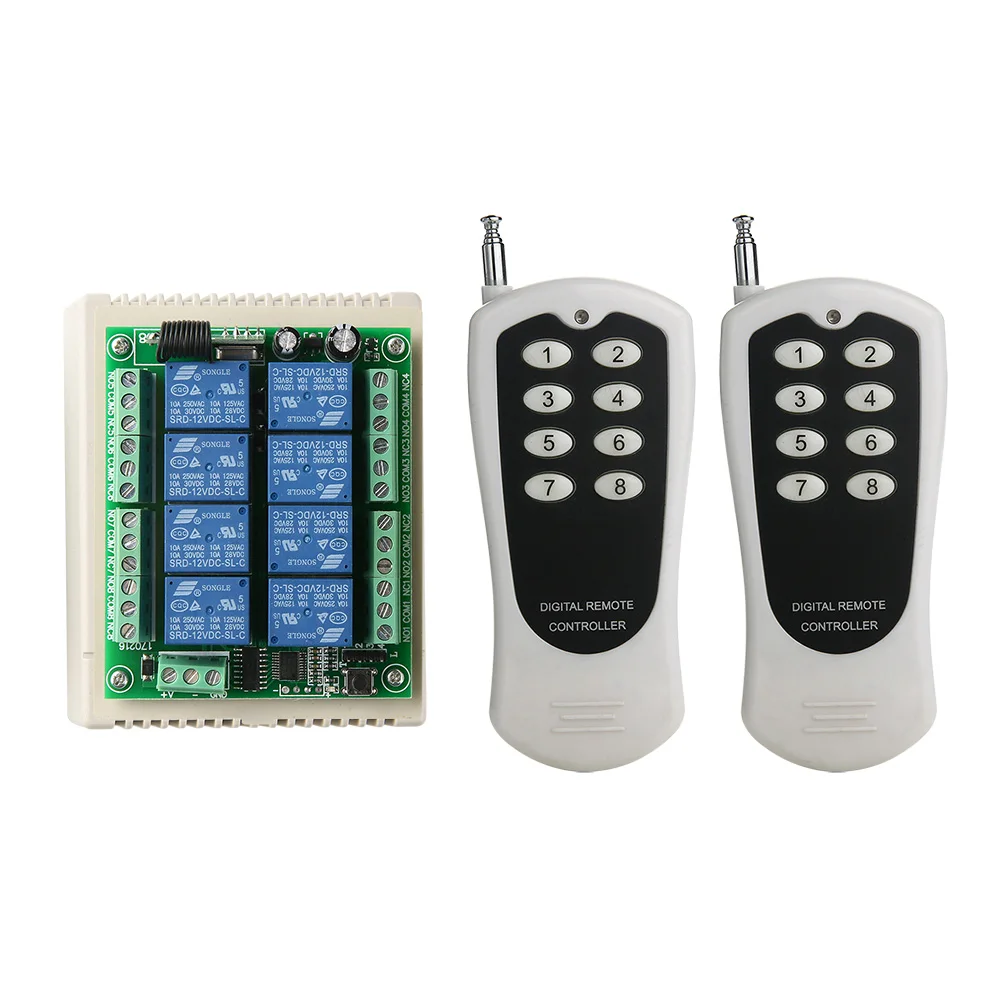

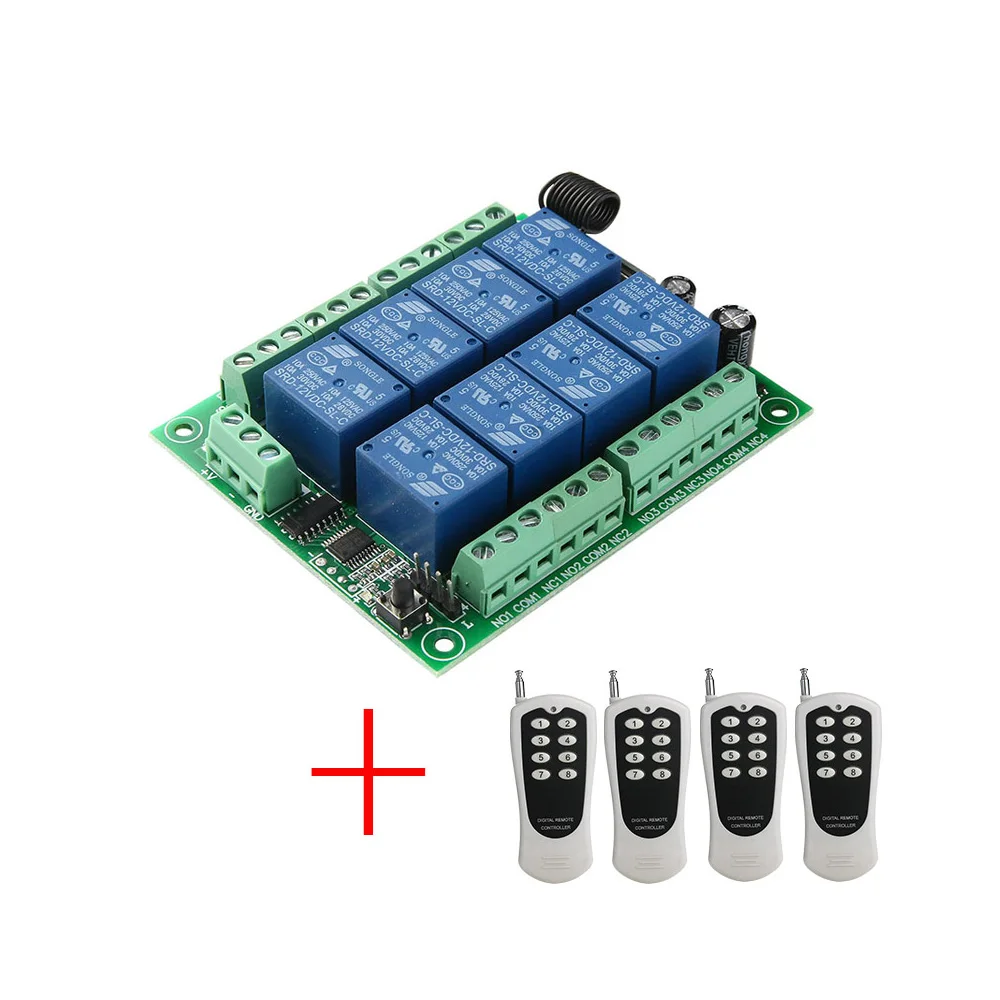

DC12V 8CH Wi-fi Good Dwelling Distant Management Change receiver Relay Module Controller TX 8 Buttons 433MHz RF Transmitter

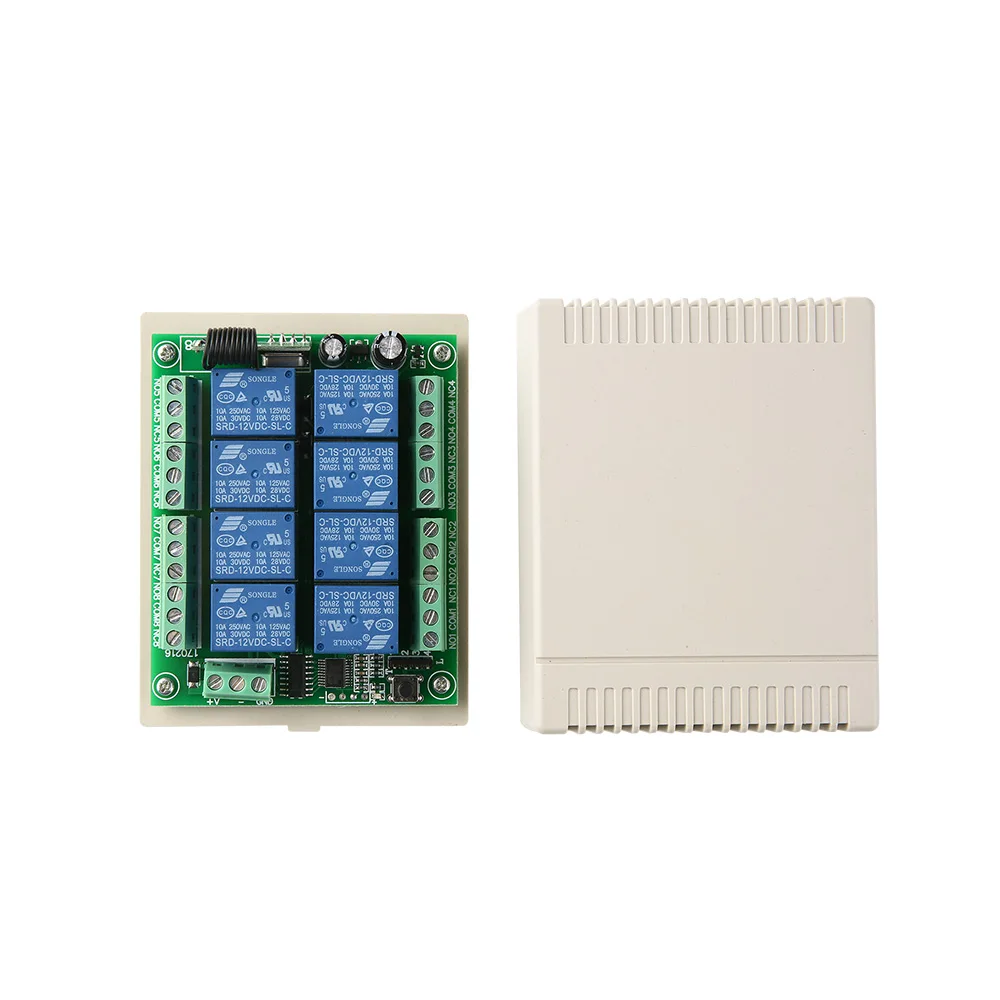

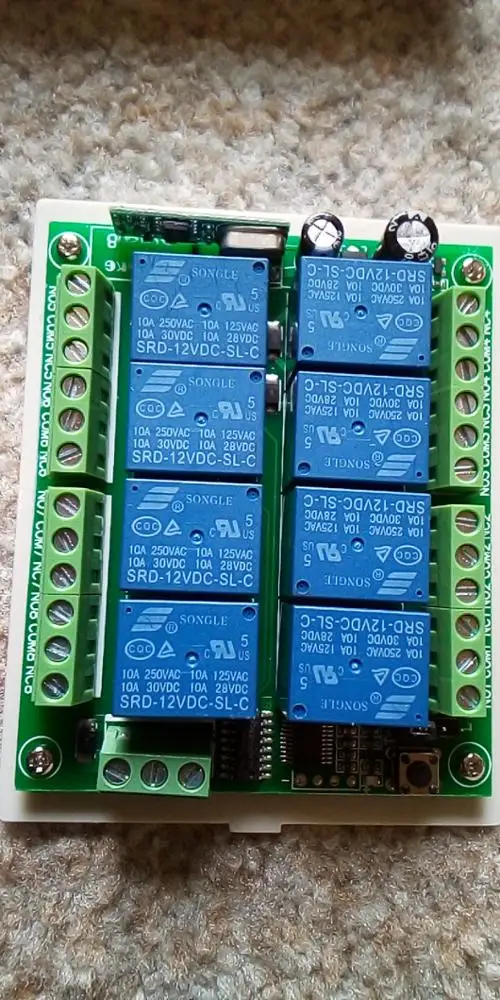

Receiver Description：
1, the working voltage: DC12V
2, quiescent present: 8mA
3, working frequency: 433MHz , different frequencies will be personalized
4, Every load energy：1000W
5, receiving sensitivity: -105dbm
6, frequency deviation: ± 0.2MHz
7, coding methodology: studying sort
8, working mode: jog, self-locking, interlocking
9, modulation methodology: ASK
10, distant management distance: 100M (wild)

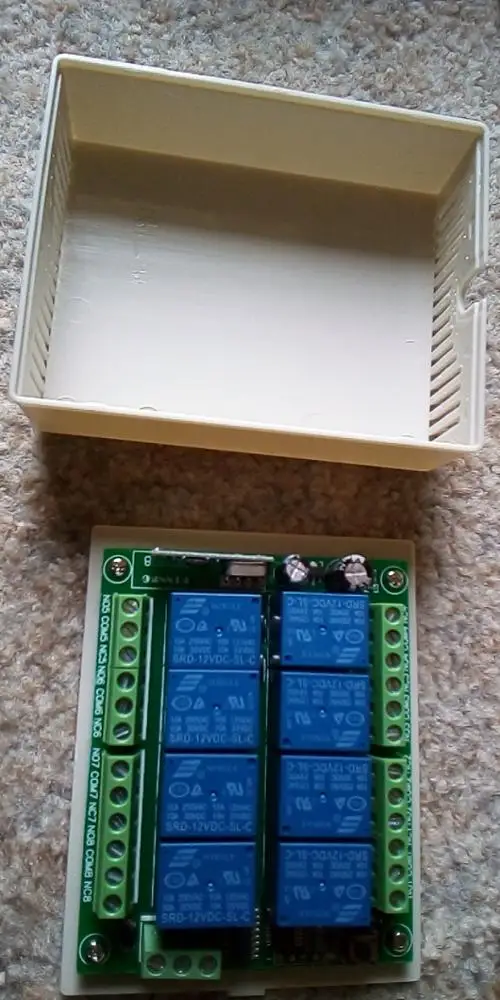

11, PCBA dimension: 86mm*71mm*18mm

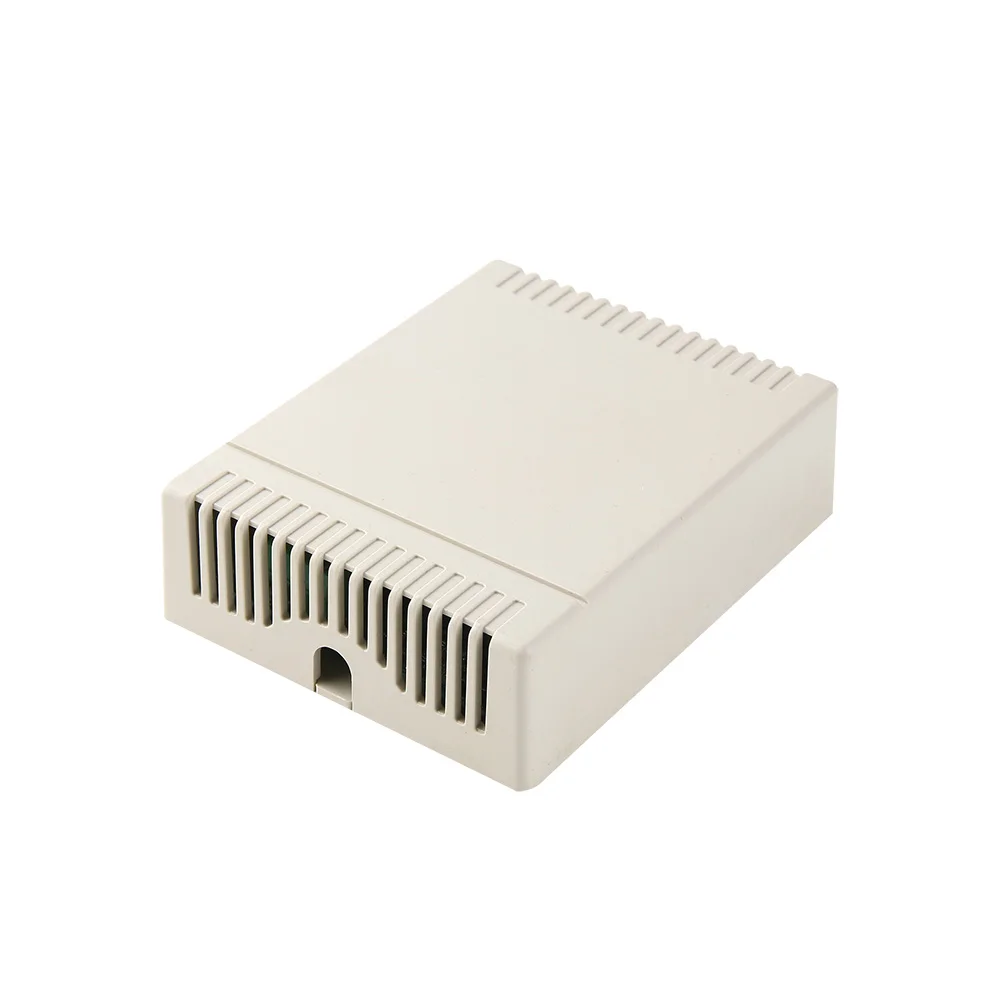

12, Shell dimension:108mm *80mm *28mm

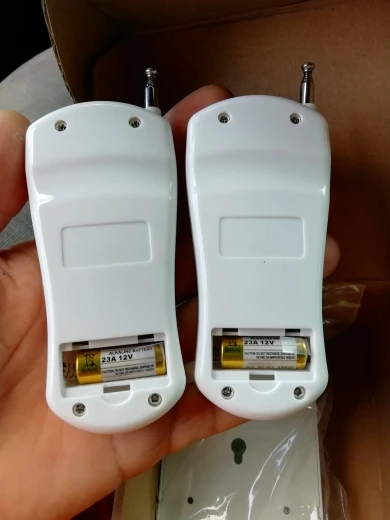

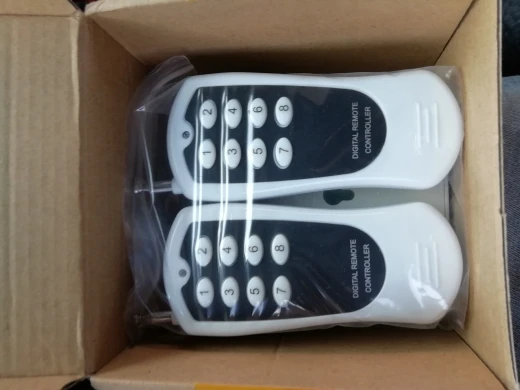

Transmitter Description:
1, the working voltage: DC12V 23A,Battery:Not included
2, quiescent present: primary energy consumption
3, working present: ≤ 10 mA
4, working frequency: 433MHz (different frequencies will be personalized)
5, transmission energy: ≥10 mW
6, distant management distance: 100M
7. Modulation methodology: ASK
8, chip sort: EV1527
9, oscillation resistance: in accordance with the necessities of the visitors
10. Working surroundings: -15/+75 levels Celsius
11, shell dimension: 108mm *50mm *17mm

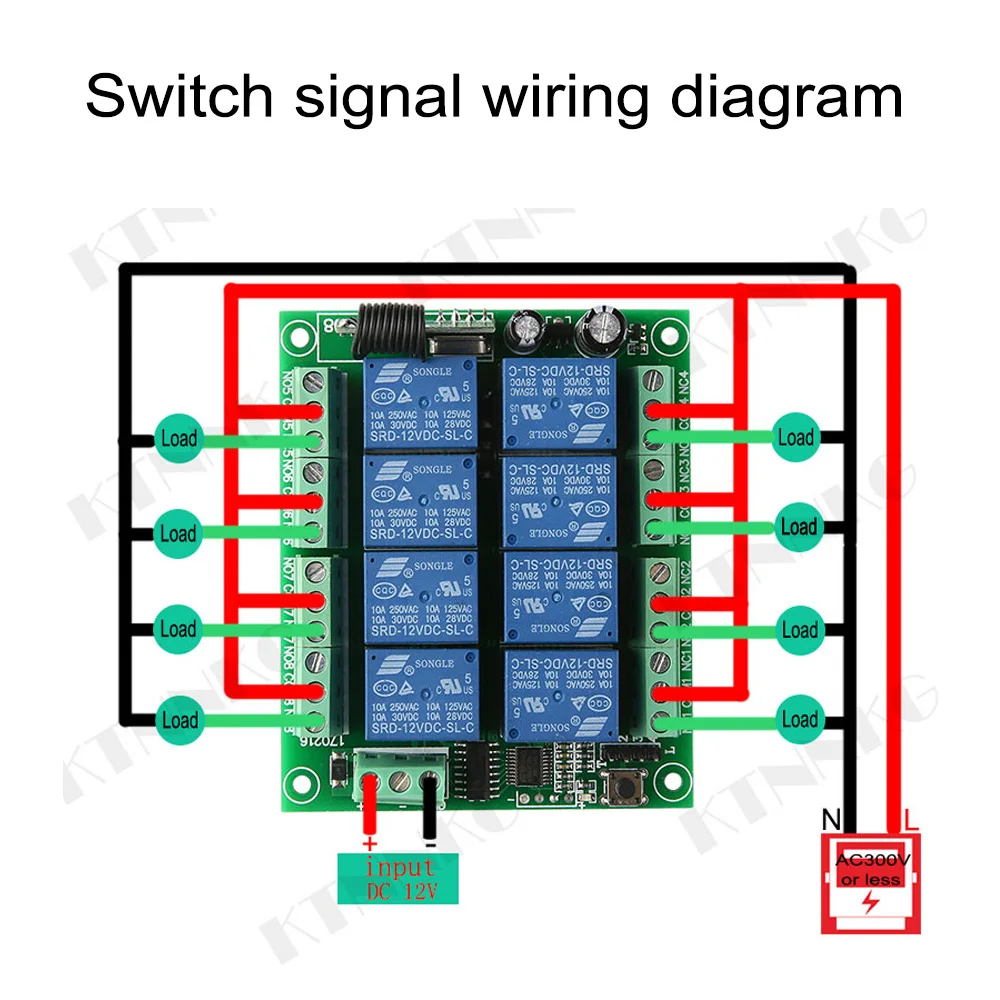

Wiring directions:

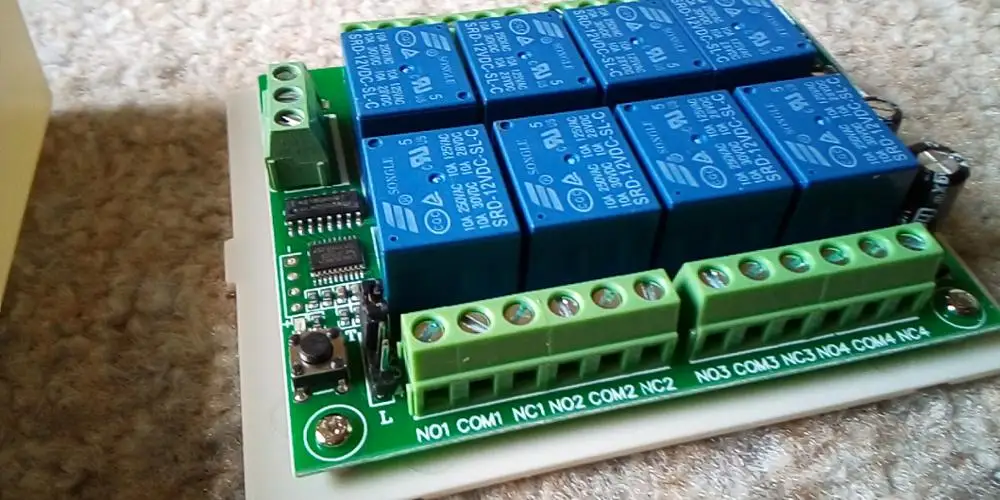

1, +V: hook up with the constructive 12V energy provide;
2. GND: Hook up with the unfavorable pole of 12V energy provide;
3, NO: output; usually open finish of the relay;
4, COM: output; relay public finish;
5, NC: output; usually closed relay;
Be taught to code: (Observe “Studying code” means “matching”) :
1. Press the management panel studying button as soon as and the LED indicator flashes. Press the distant management button that must be paired. The management panel LED indicator blinks 3 instances in succession, which signifies that the educational code is profitable.
clear knowledge:
Press the educational button on the management panel to chill out. After the LED indicator flashes 5 instances, it should mechanically clear all distant controllers that be taught the code. After the purge, the distant controller that had beforehand realized to go the code will now not be managed.
Work mode description:

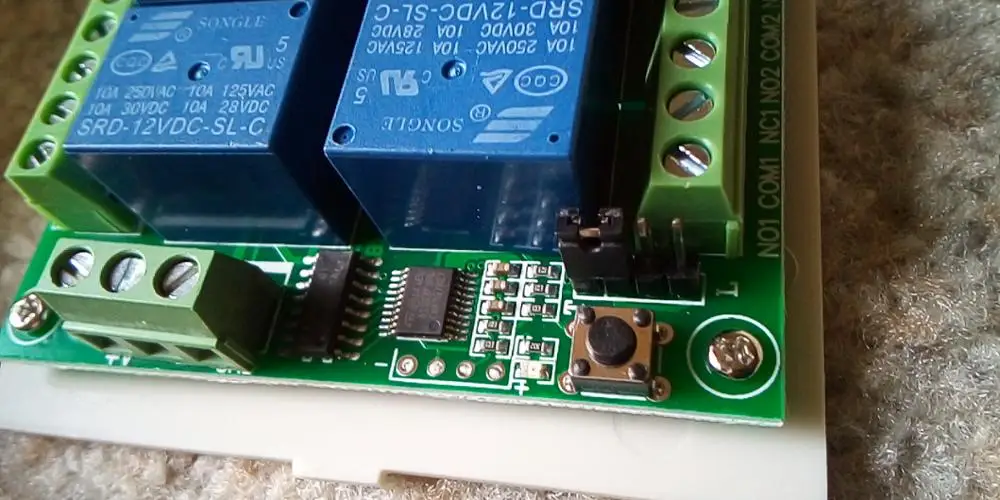

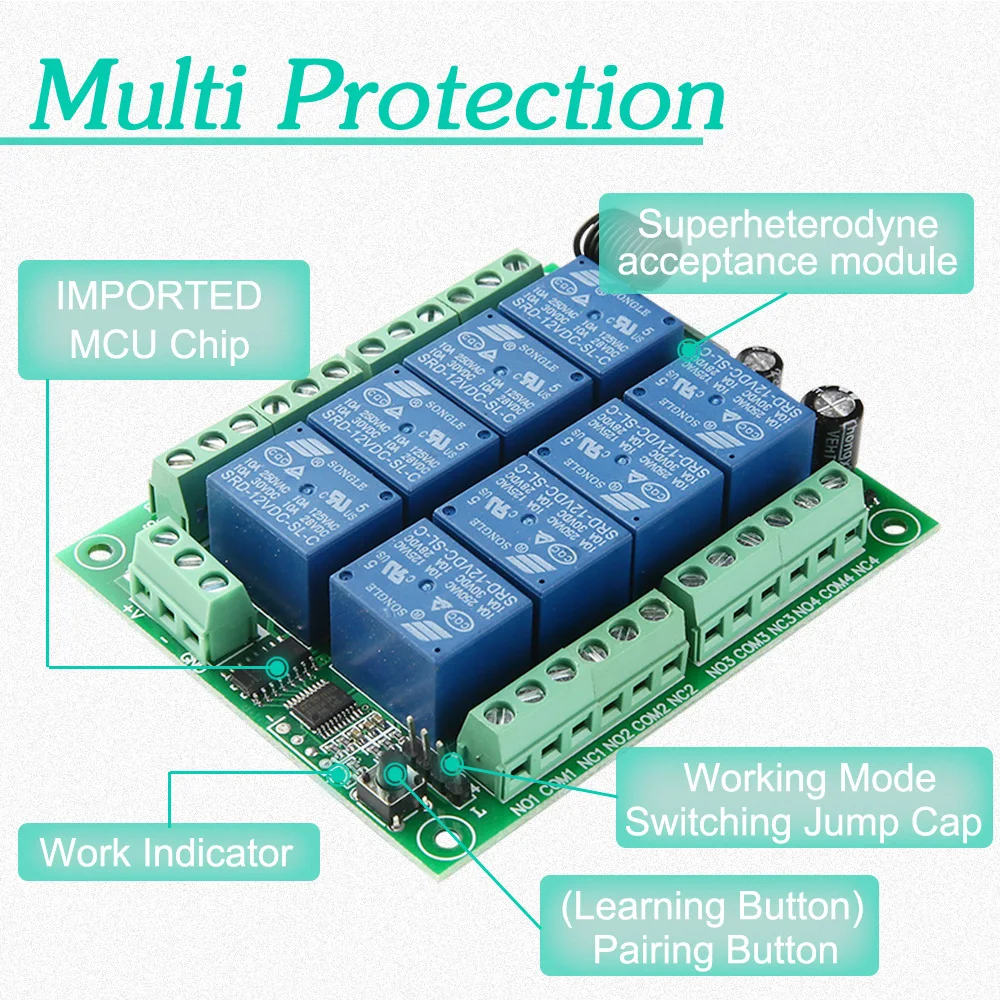

1. Set to jog output: Take away the jumper cap on the board.
2. Set as self-locking output: quick the “1-2” pin with the jumper on the board.
3, set to interlock output: use a jumper on the board to quick “3-4” pin.
Output mode clarification:
1. Self-locking/Toggle: Press the identical distant management button, press, relay opens, then press once more, the relay is off.
2. Interlock//Latched: Press the distant management “A” key, the relay opens, press the distant management “B” key, the relay is off.
3, Jog/Momentary press the distant management “A” button, the relay opens, launch the distant management “A” button, the relay off. If you happen to preserve urgent the “A” button on the distant management, the relay will stay on. If you launch the distant management, the relay will flip off.
