Fasteners Plus ST Fastening #14 x 1″ ZXL Tapping Steelbinder Metallic Roofing Screws Metallic-to-Metallic Galvanized (Pack of 250)

Value: $71.19
(as of Oct 02,2022 12:44:11 UTC – Particulars)

Product Description

FEATURES

2.5 mil of pc managed powder coat is utilized over zinc plating and chromate sealer.
Distinctive polyester powder formulation resists dangerous UV rays and chemical breakdown.
POWDERFUL is totally freed from risky natural compounds (VOC), and is solely recyclable.

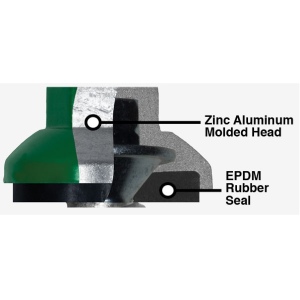

5/16” Cupped HWH is manufactured from a robust ZAMAC zinc-aluminum alloy, The pinnacle is molded. It isn’t a cap. The molded head encapsulates the EPDM washer, which inserts neatly and conforms to the within of the mould.
ZXL is proudly molded within the USA.
Kind AB fasteners are designed to connect long-life roof panels akin to GALVALUME which are utilized in pre-engineered steel constructing utility. Kind A fasteners are designed to be used in wooden framed buildings.
Fasteners are additionally utilized in retrofit functions through which present screws have stripped/backed out & should be changed with a bigger diameter.
5/16” Cupped HWH ZAMAC Zinc-Aluminum Alloy gives lifetime safety in opposition to purple rust on the top & washer face.
The pinnacle & washer face captures the rubber EPDM washer even when pushed at an angle & are designed to maximise Pull over energy.

FOR PROPER INSTALLATION, THE USE OF IMPACT DRIVERS ARE NOT RECOMMENDED FOR POWDER COATED OR ANY WET PAINTED FASTENER.

PULLOUT & PULLOVER VALUES ARE DETERMINED IN THE ST FASTENING SYSTEMS ENGINEERING LABORATORY USING STEEL PANELS/FRAMING & WOOD DENSITIES WHOSE STRUCTURAL PROPERTIES ARE FOUND IN PRESENT DAY PRODUCTS.

The Zinc-Aluminum alloy HWH prevents purple rust from ever beginning. ST Fastening Techniques spring retainer sockets are really useful. ST Fastening Techniques sockets are designed to permit for the added thickness of the powder coat.

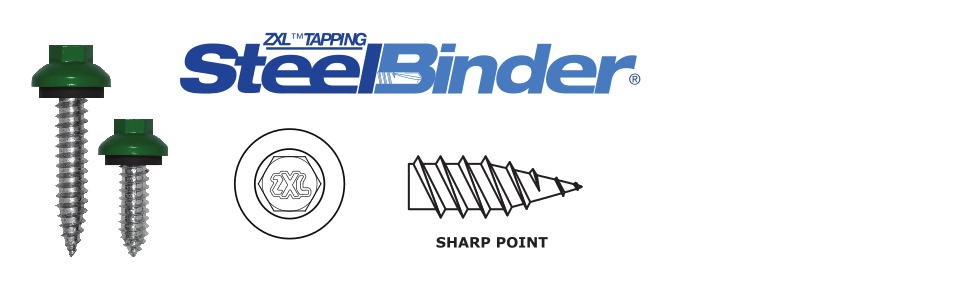

ST Fastening ZXL Tapping SteelBinder Metallic Roofing Screw

The AB thread kind is designed to offer most pull out energy in metal in a pre-drilled gap.

ST Fastening ZXL Tapping SteelBinder Technical Specs

HEAD STYLE
5/16″ CHWH AB

DRILL POINT
30° SHARP POINT

MAJOR DIAMETER
.246 / .240

MINOR DIAMETER
.192 / .185

WASHER FACE DIAMETER
.630

HEAD ACROSS FLATS
NOM .312″

ULT. TENSILE STRENGTH
2240 LBS

MIN. TORSIONAL STRENGTH
150 IN-LBS

NOM. SHEAR STRENGTH
2850 LBS

ST Fastening ZXL Tapping SteelBinder Sew Technical Specs

HEAD STYLE
5/16″ CHWH AB

DRILL POINT
45° SHARP POINT

MAJOR DIAMETER
.282 / .273

MINOR DIAMETER
.220 NOM.

WASHER FACE DIAMETER
.630

HEAD ACROSS FLATS
NOM .312″

ULT. TENSILE STRENGTH
2240 LBS

MIN. TORSIONAL STRENGTH
220 NOM.

NOM. SHEAR STRENGTH
3952 LBS

Product Dimensions ‏ : ‎ 1 x 0.31 x 0.31 inches; 5.49 Kilos
Date First Obtainable ‏ : ‎ March 25, 2022
Producer ‏ : ‎ ST Fastening
ASIN ‏ : ‎ B09WG9P7T7

[TYPE AB FASTENERS] Designed to connect long-life roof panels akin to GALVALUME which are utilized in pre-engineered steel constructing utility. Designed to be used in wooden framed buildings
[RESCUE SCREW] Utilized in retrofit functions through which present screws have stripped/backed out & should be changed with a bigger diameter
[COATED SCREWS] Characteristic a troublesome 2.5 mils of powder coating that won’t chalk or fade on account of UV inhibitor in all coloured coatings.
[RUBBER EPDM WASHER] 5/16″ Cupped HWH ZAMAC Zinc-Aluminum Alloy with rubber EPDM washer captures even when pushed at an angle & are designed to maximise Pull over energy
