Firm and compact design
Safe and simple installation
Stable and durable aluminum material, no worry about rust.

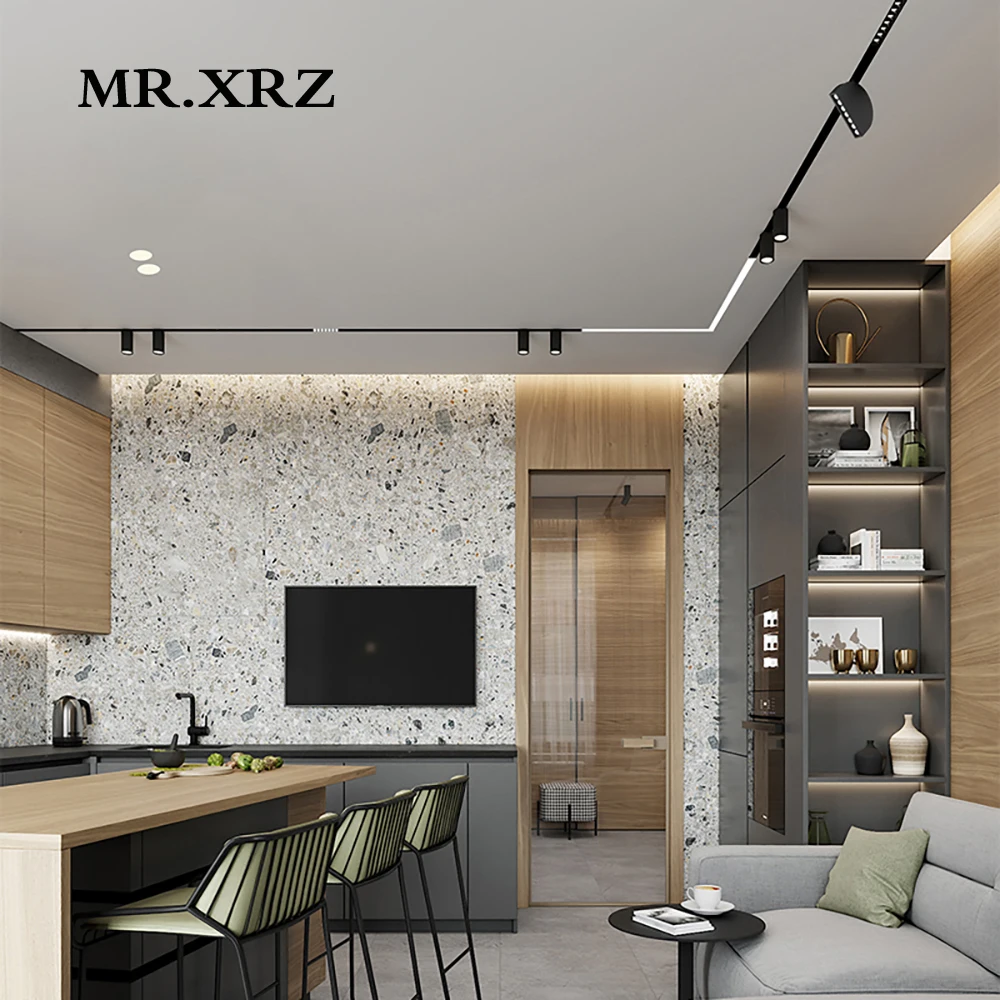

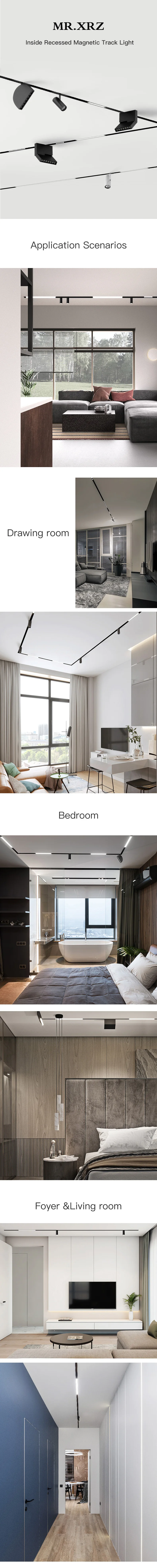

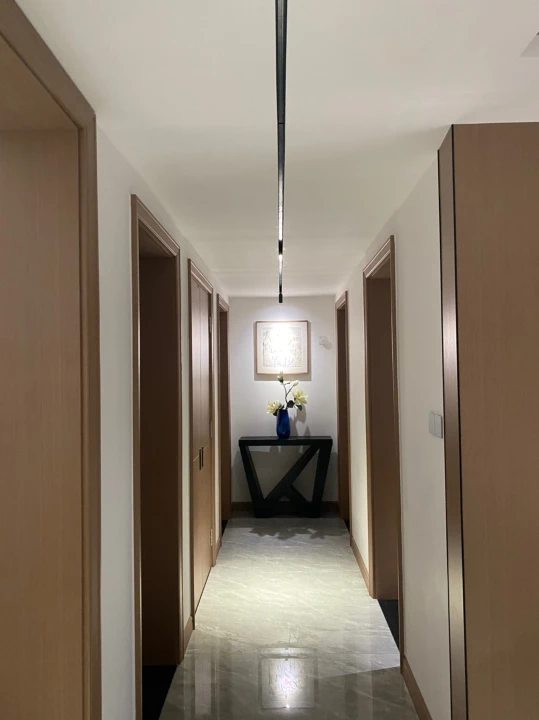

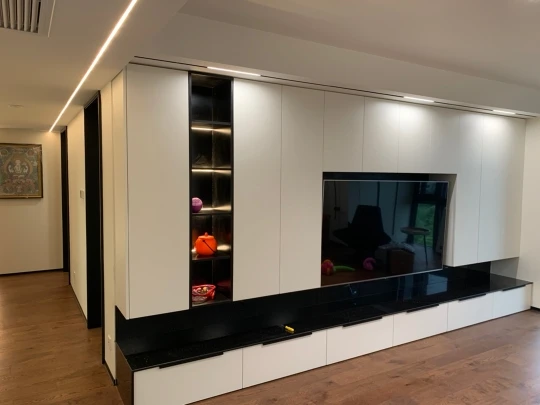

Application scenarios: Foyer, bedroom, study, hallway, kitchen, etc.
Material: Die-cast Aluminum
Body color: Black, White
Light source type: LED
CRI (Color Rendering index (Ra>90) close to daily vision, which is eye-protecting and more suitable for Reading)
Chips Brand: Cree Chips
Transformer: DC 24V OSRAM Transformer
Input Voltage: 220V-240V (If your country is other voltage, please contact us. We can change other transformer for you.)
Output Voltage: 24V
Wattage: 8W 10W 14W 28W
Luminous Flux: 80lm/W

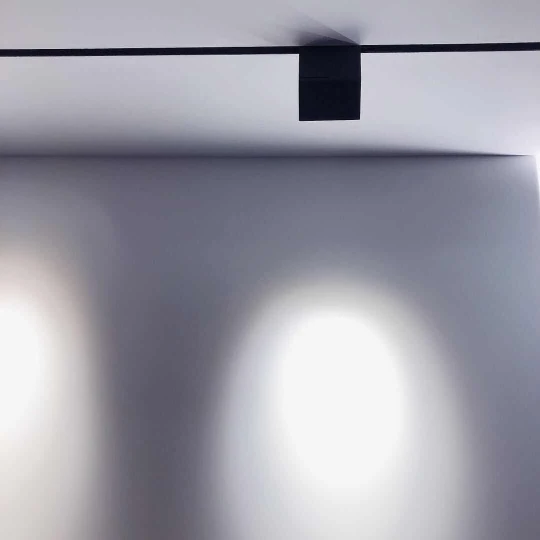

Beam angle: 25 degrees, 30 degrees

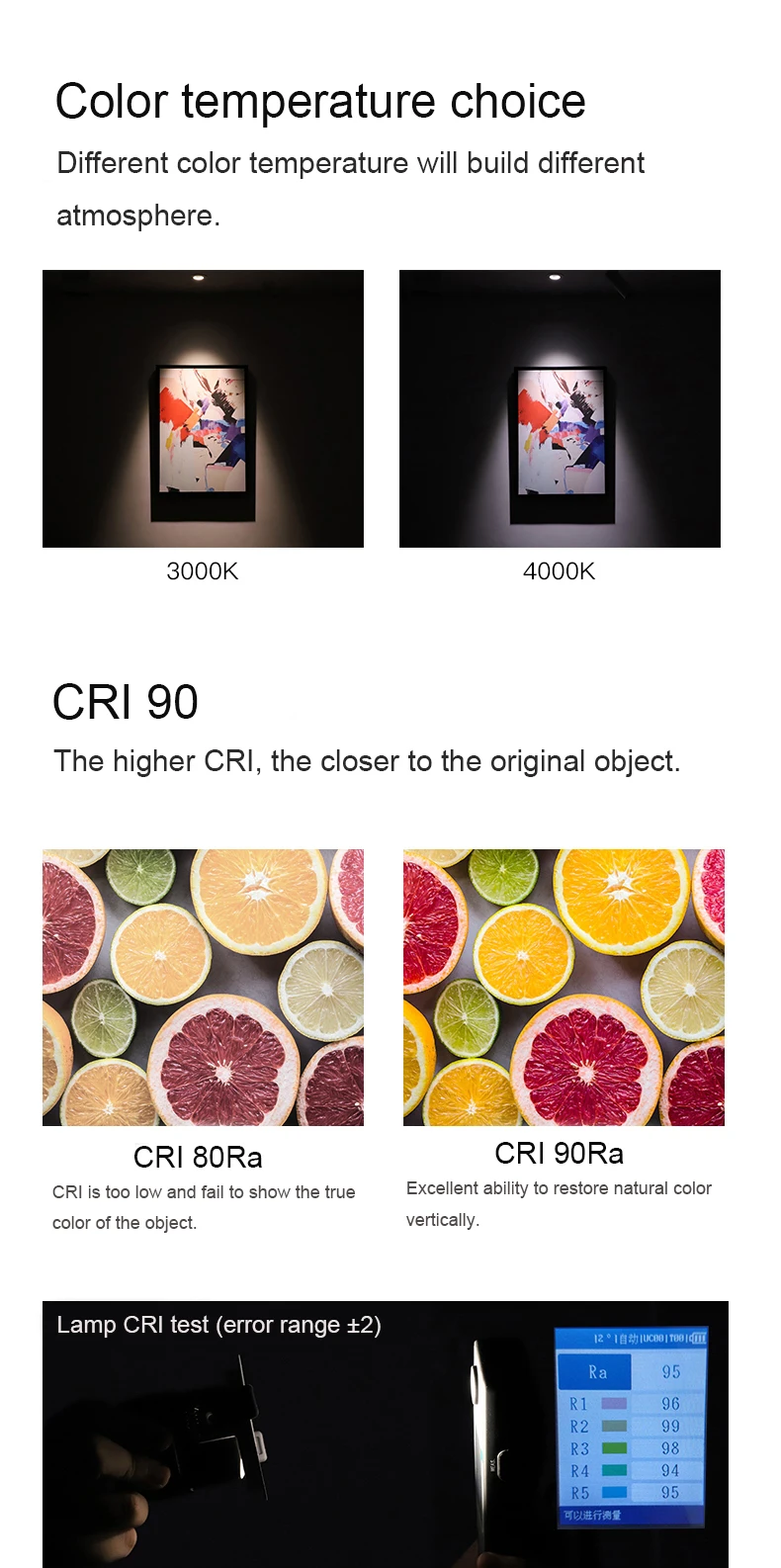

Color temperature: 3000K/4000K, Warm White (3000K), Natural white (4000K)
Warranty period: 2 years
Life hours: 50,000 hours
Magnetic Track System Package Kit List:
1. 1m/1.5m Recessed Magnetic Track Rail
2. 60W/120W/180W OSRAM Transformer

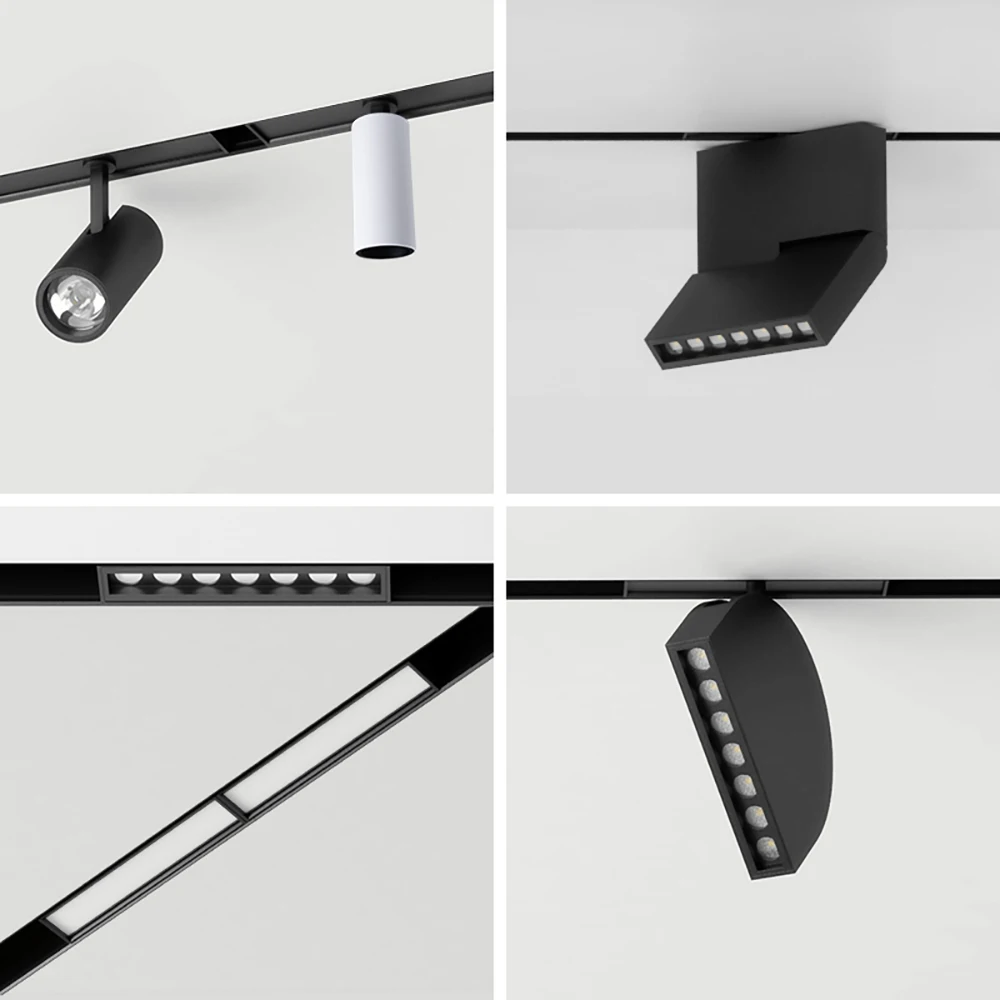

3. LED Magnetic Track Lights
4. Accessories of Straight Connector(No need to buy additionally)
5.Turn direction connector (Only when you need to turn direction of magnetic track rail, you will need to buy it!)
Please add all the necessary magnetic track system parts (Magnetic track rail, DC 24V transformer, Turn direction connector and magnetic track lights) to your “Cart”, then place an order together!

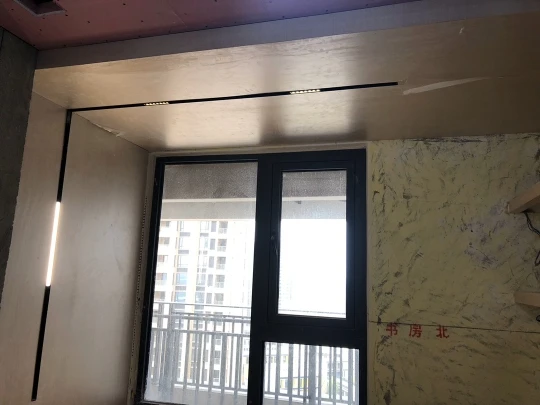

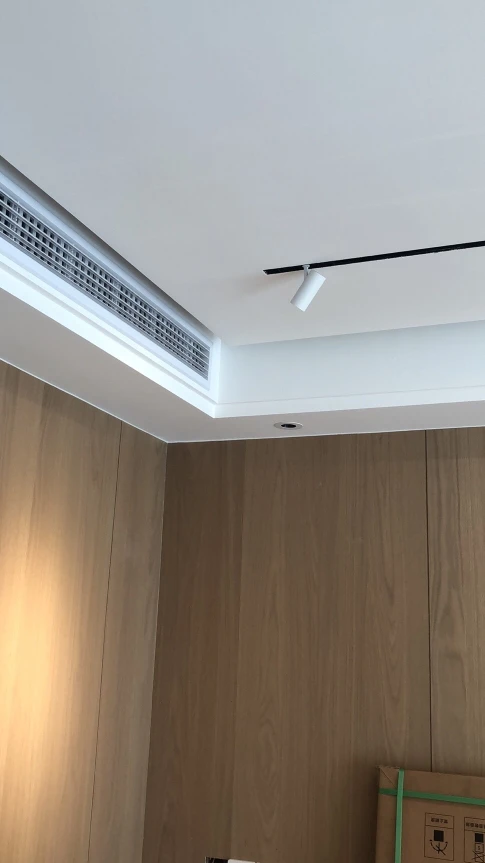

Recessed mounted magnetic track installation procedure
The height of magnetic track is 76mm, please leave enough space when constructing suspended ceiling in advance!
1.Determine the installation position of the track
2.Leave the and installation position and reinforce with plank
Leave 40mm for the installation of track
3.Choose the corresponding lamps and begin to install
Please see the installation video to get more details
4.Fasten the track screws, start power-on test in every segment of track
5.Clip into dust-proof chip
6.Plaster the putty
7.Install the magnetic lamps
1. Question：What’s the difference between magnetic track lamps and normal track lamps?

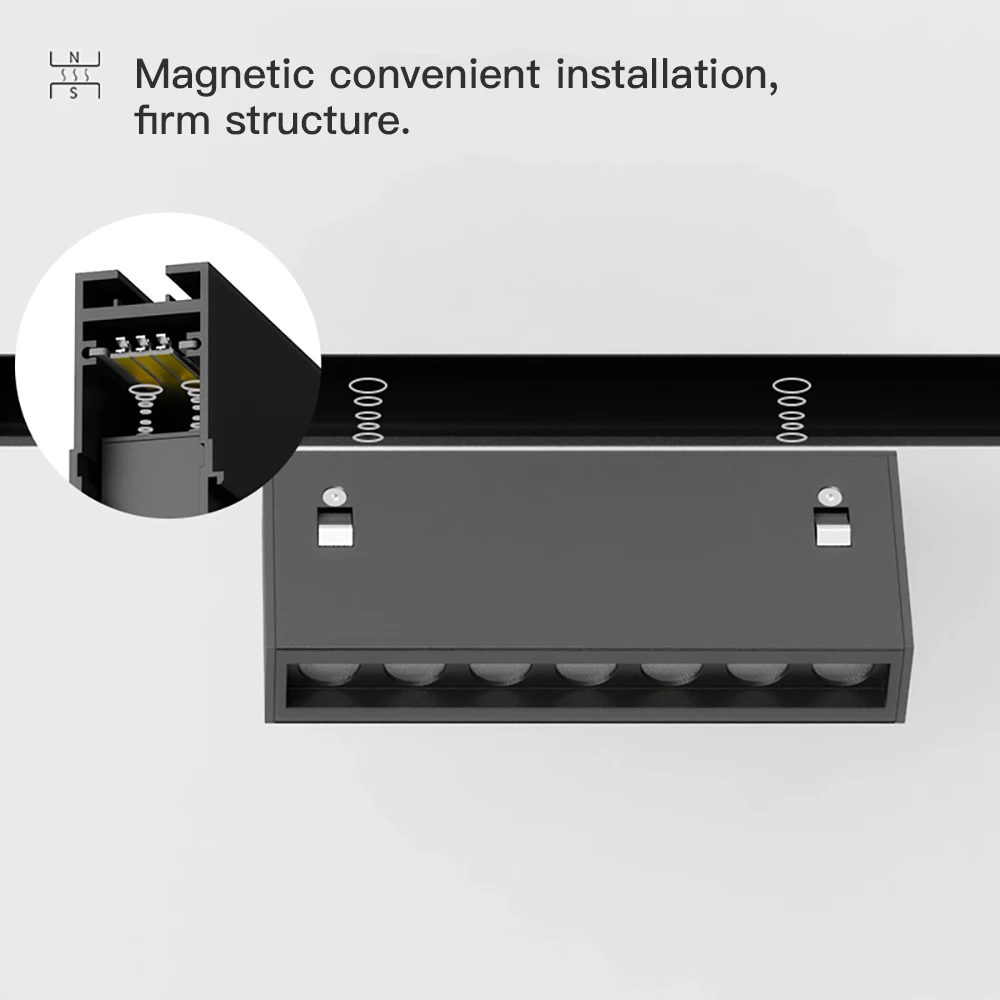

Answer：(1) Unlike the normal track lamps, our magnetic track rail and magnetic track lamps have the magnetic connection, which makes the installation and adjustment more easy. (2) And the all magnetic track lamps are apply low voltage DC 24V led lamps, you can even touch the magnetic track and no need to worry the electric shock. So it’s safer than the normal 220V-240V track lamps.
2. Question：Is the recessed magnetic track spotlights are all same with the surface and pendant magnetic track spotlights?
Answer：Yes, all these 3 type magnetic track spolights are the same. You can install the magnetic track spotlights in any type(recessed, surface an pendant) magnetic track bar.
