Note: it only works on Android TV, Samsung/LG not belong to Android Operating System.
If you want to use it with Samsung/LG TV, you must connect an extra Android TV box to your TV first, then can be used with our product.
What software is needed?

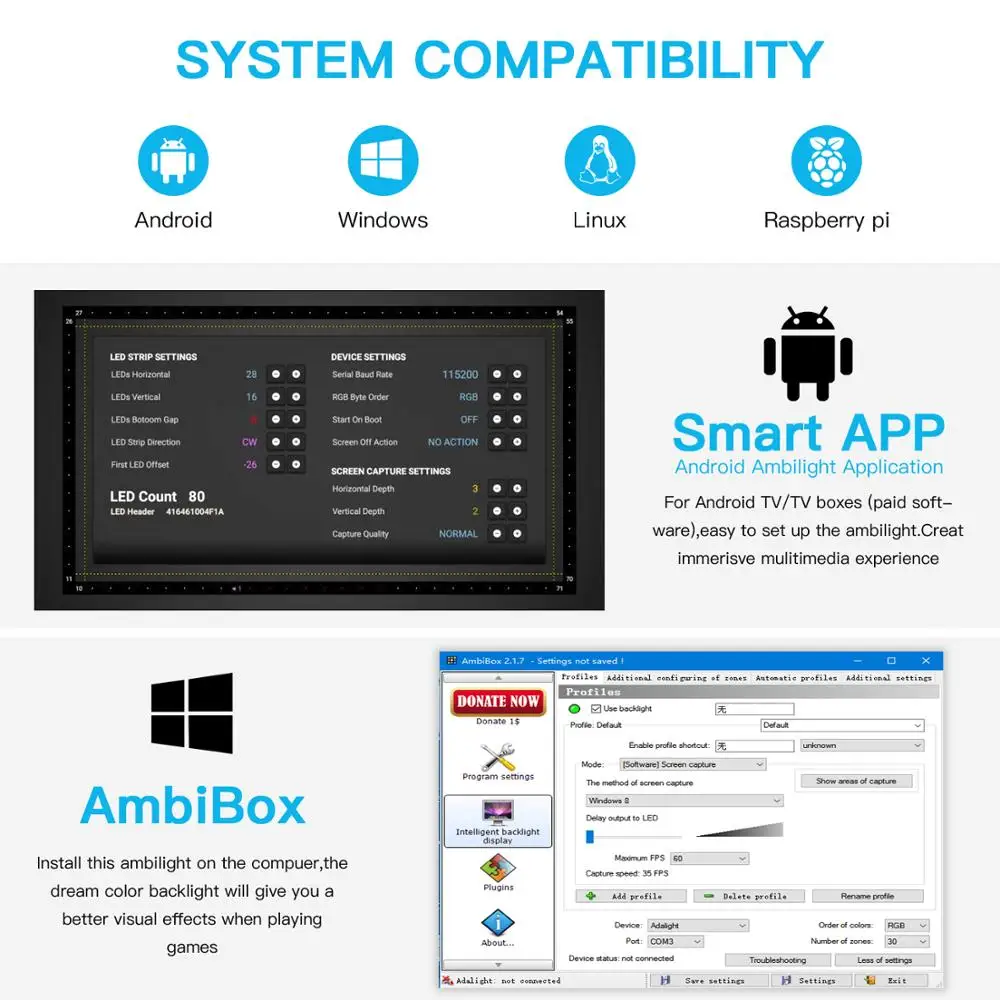

Windows: Ambibox or Prismatik
Raspberry Pi: Openelec/libreelec+Hyperion ( )
Android TV/TV boxs (Android 5.1 or above): Android ambilight application (Paid software)
(Or, the video signal of the computer is output to TV, TV as monitor.)
(Or, install or run Openelec/libreelec+Hyperion on your TV/TV box.)
It is important to know!
The analog TV signal is not processed by the Android OS level, so the backlight application will not work with regular TV channels. The backlight works only with Android OS applications that do not use protected content. 4K performance depends only on your hardware.
Unfortunately, programs such as YouTube and Netflix use protected content (DRM), Ambilight application has no ability to work with them. In order to make it work you should use the special client. For example SmartYoutube.

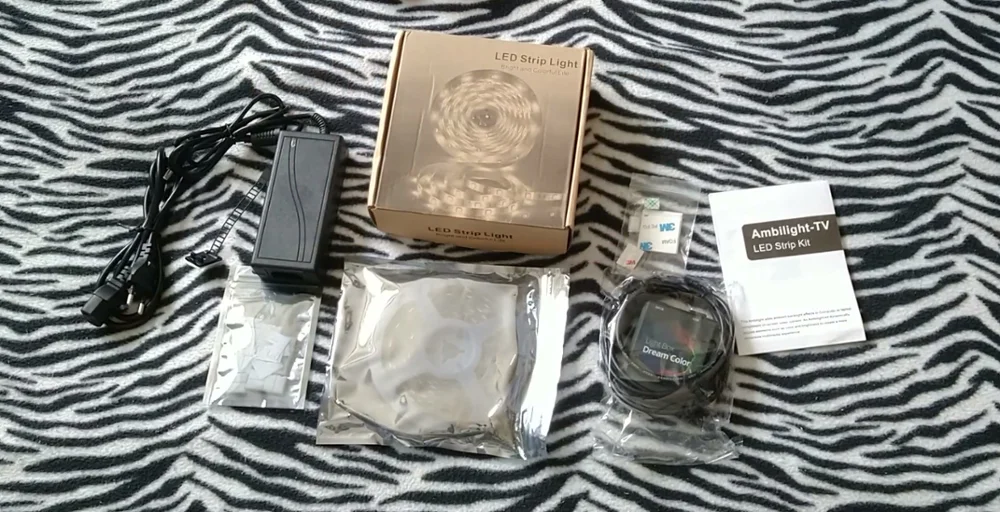

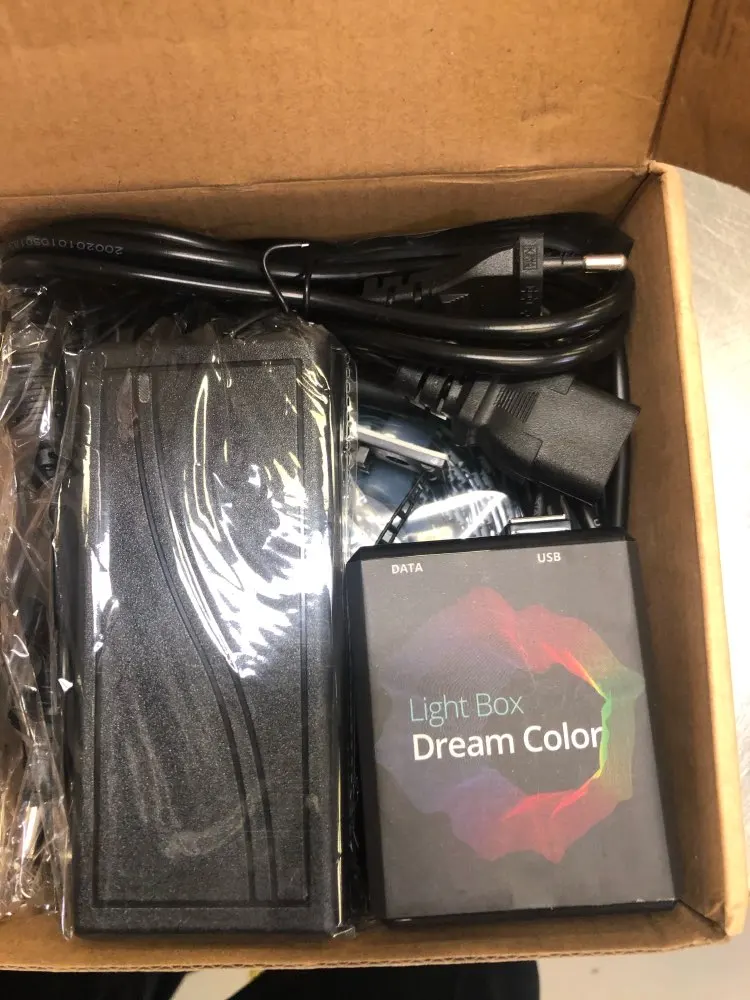

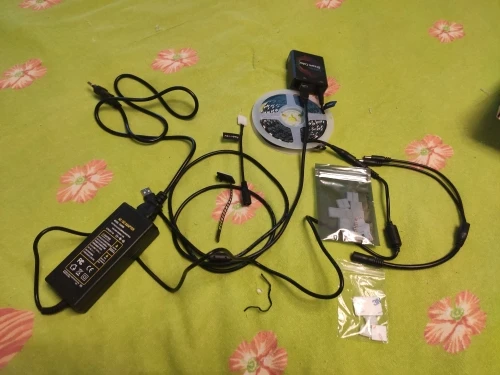

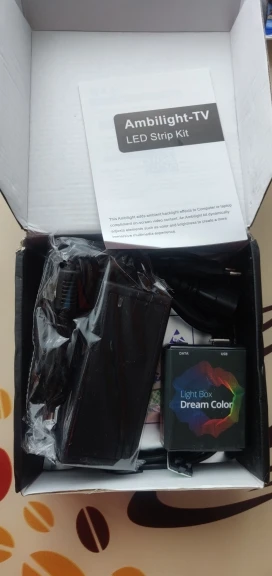

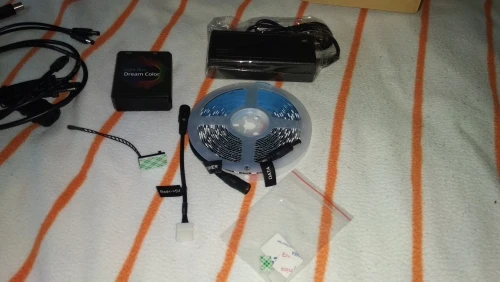

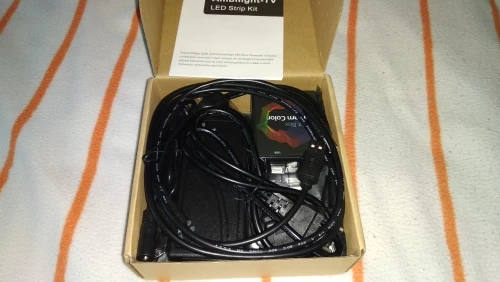

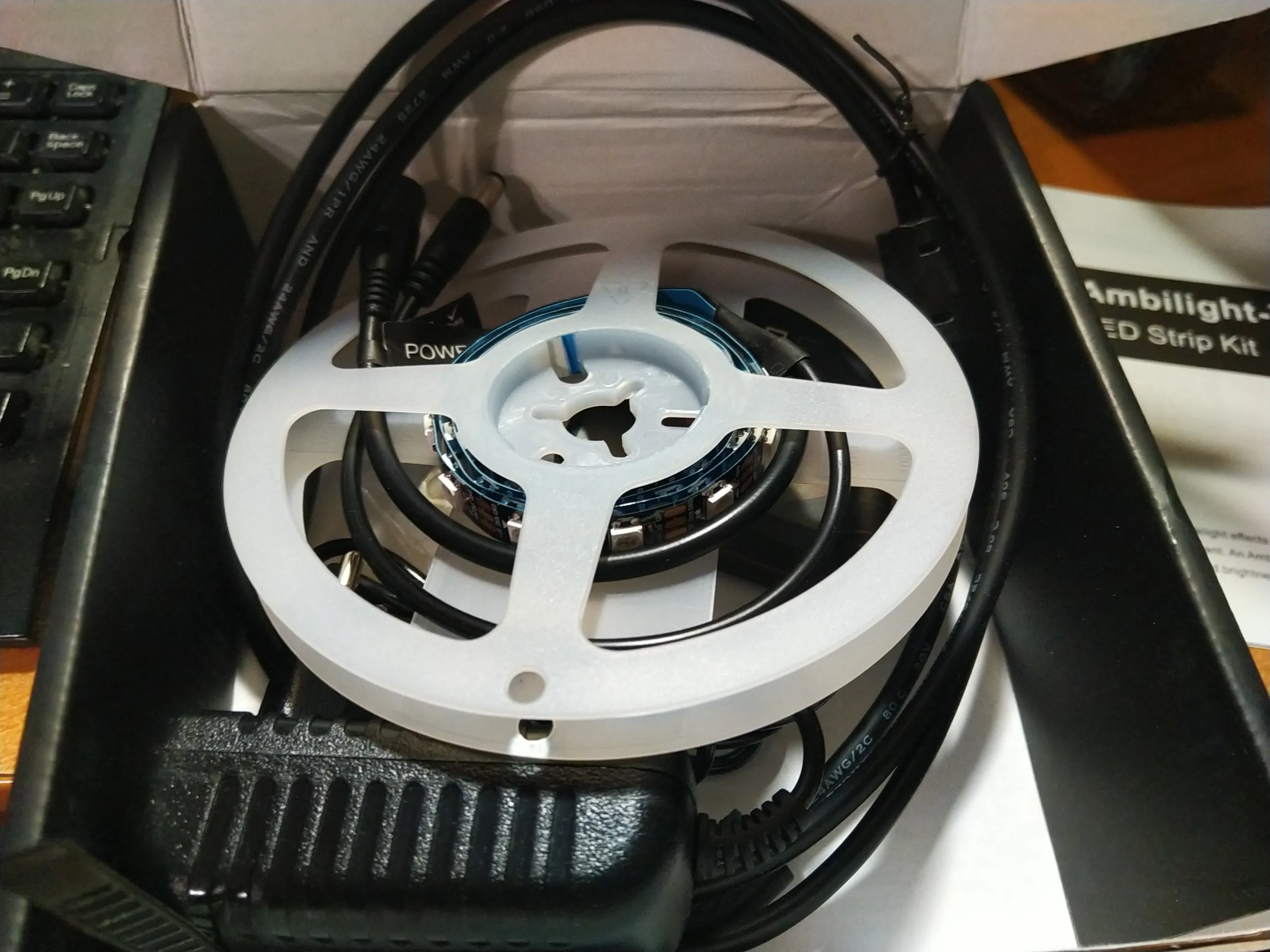

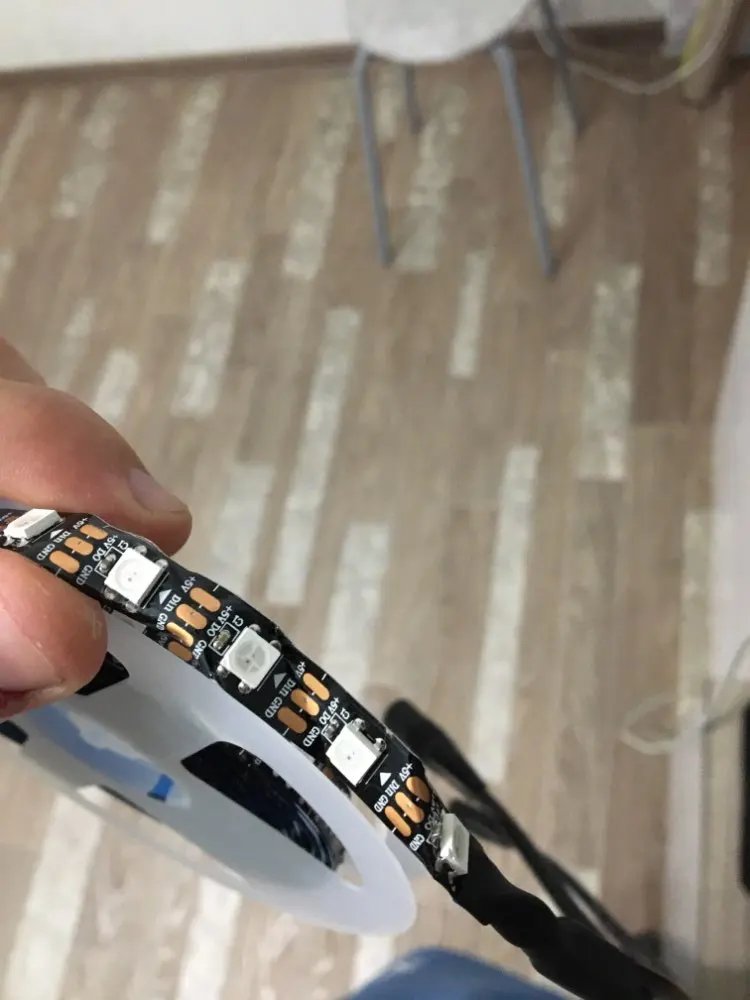

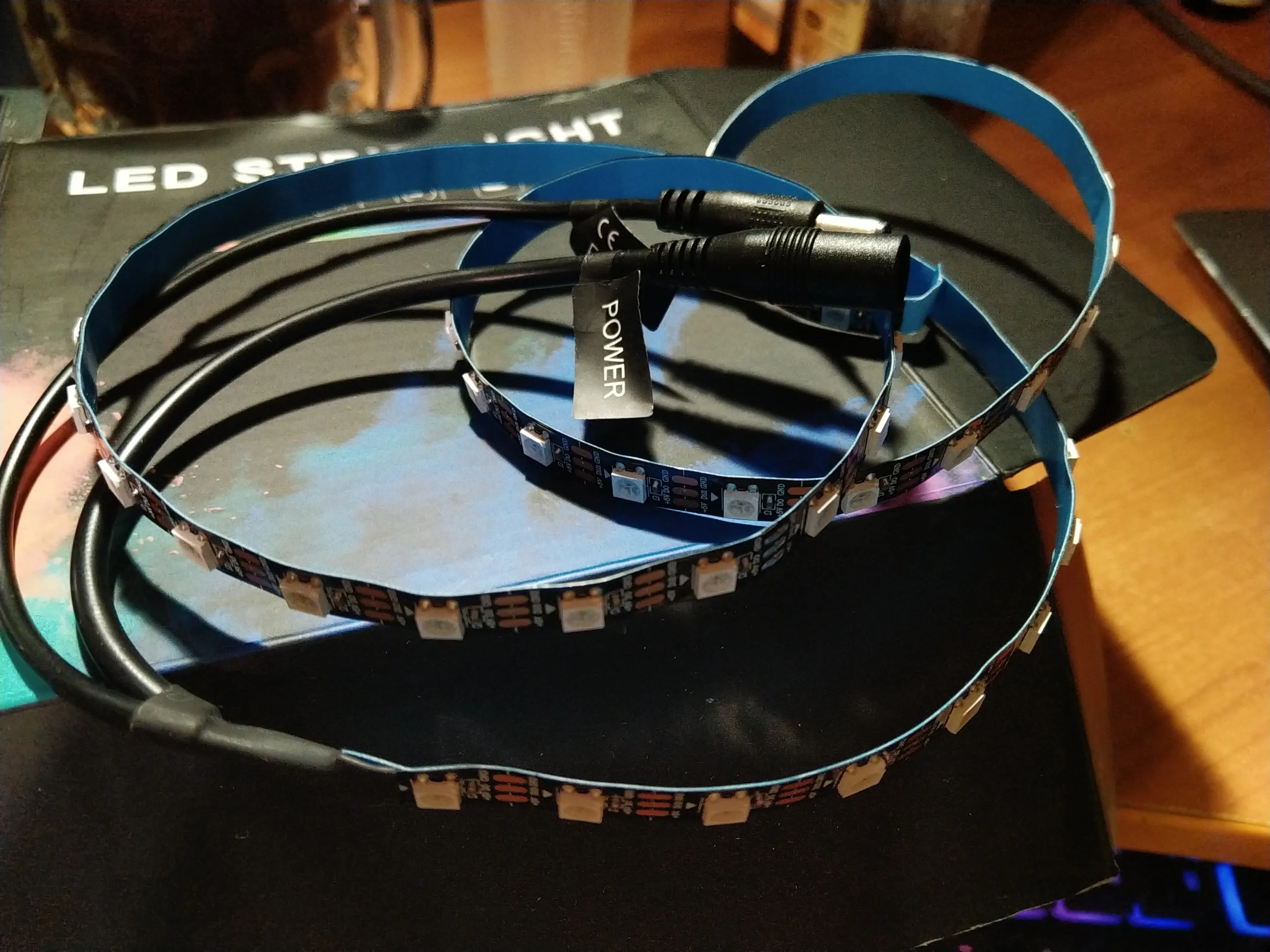

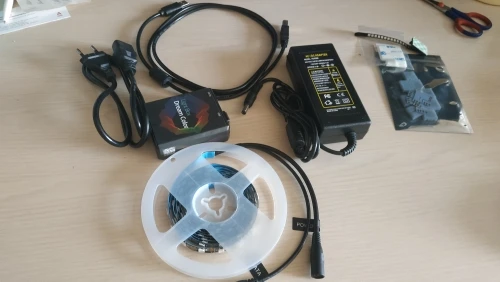

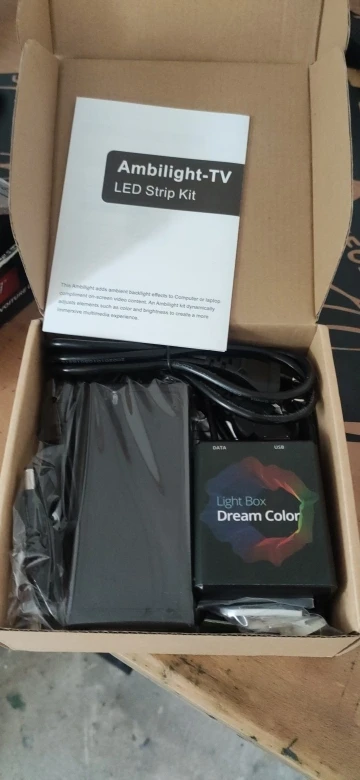

1 * LED Strip

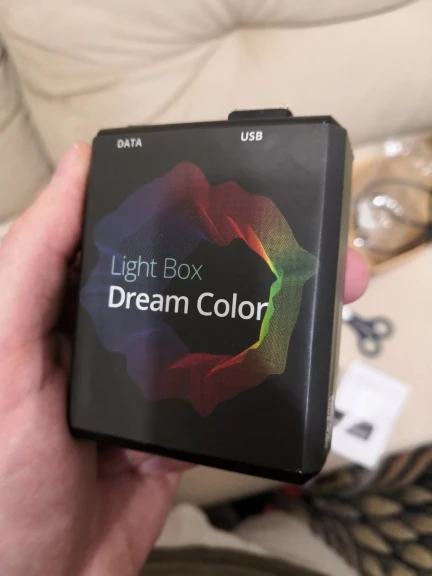

1 * Light Box
1 * USB Cable

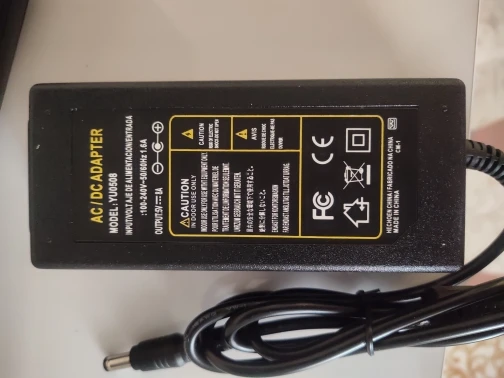

1 * Power Adapter
Warm Prompt:
Because the set up of this item is a bit complicated, if the product does not work properly, please be sure to contact us first instead of open dispute or write negative feedback directly, we must help you solve it, thank you!

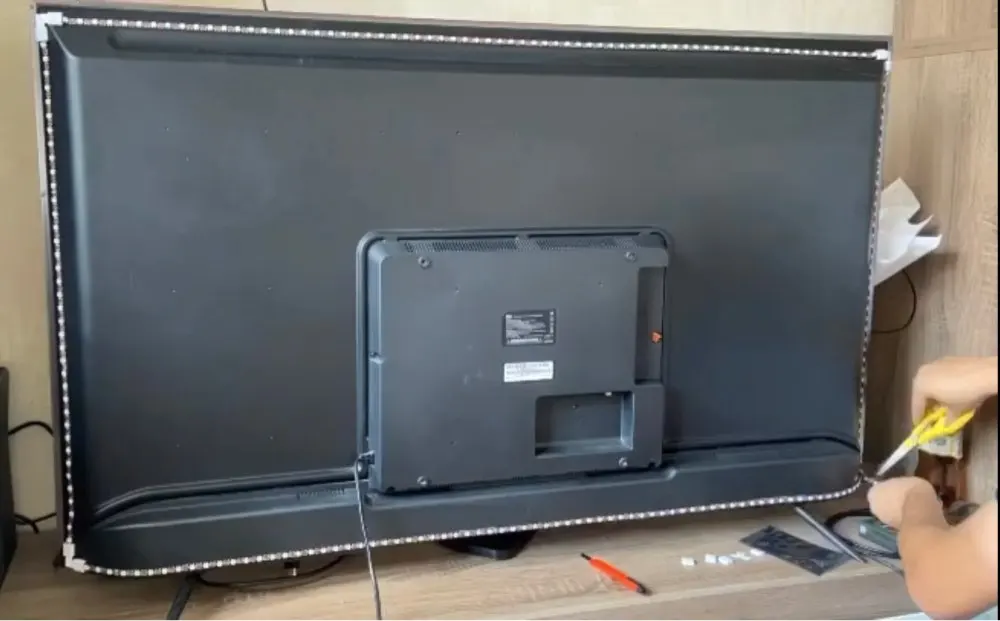

Step 1: Install LED light on your TV(please refer to the video for details)
Step 2: Purchasing a Paid Software on Google Play: Android Ambilight Application
Note: Android TV/TV boxes(only Android 5.1 or above can be used)
Step 1: Install LED light on your PC. (please refer to the video for details)
Step 2: Setting up the Ambibox Capture Software.
2.1. Ambibox software(Shareware); Download link:
2.2. Run the Ambibox software, when installing, it recommends to use PlayClaw, I wouldn’t recommend to using it.
2.3. Select device and set this as “Adalight”, under menu of “Intelligent backlight display”, select the Port and the COM Port that your device has been detected. If select correctly, you can see Device Status: Connected, also down the bottom left it will say Adalight: connected.
2.4. Once you setted up, you can select the “Wizard capture zones” which will automatically generate all capture zones for you.
PRO TIPS: if you find your colours are washing out or seem very white rather than colourful, adjust your gamma settings, if you getting a white backlight on a pure black screen, increase the size of sample zones, It will take a bit of fine tuning but worth it!
The software analyses what you currently have on the screen, be it a movie, a game, or
anything else, it’ll sends this information to the device which in turn lightens the surface
behind the screen with matching colours using the RGB-LEDs available within the device.
s***s –

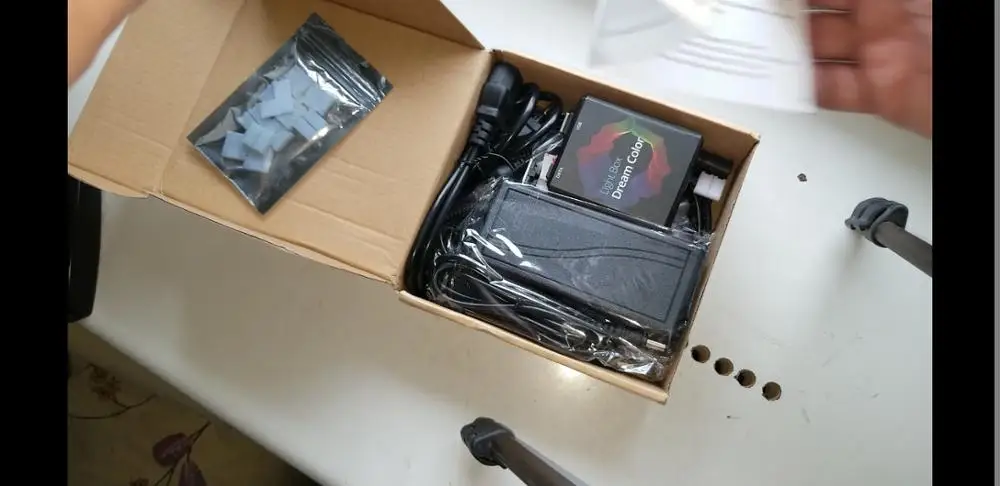

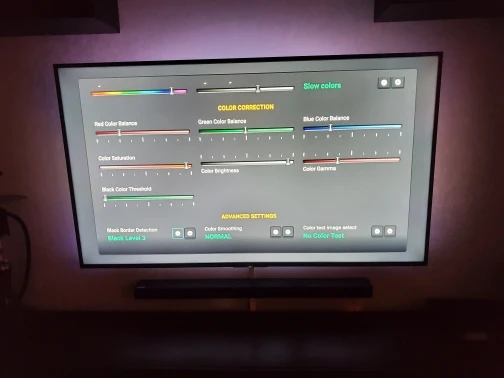

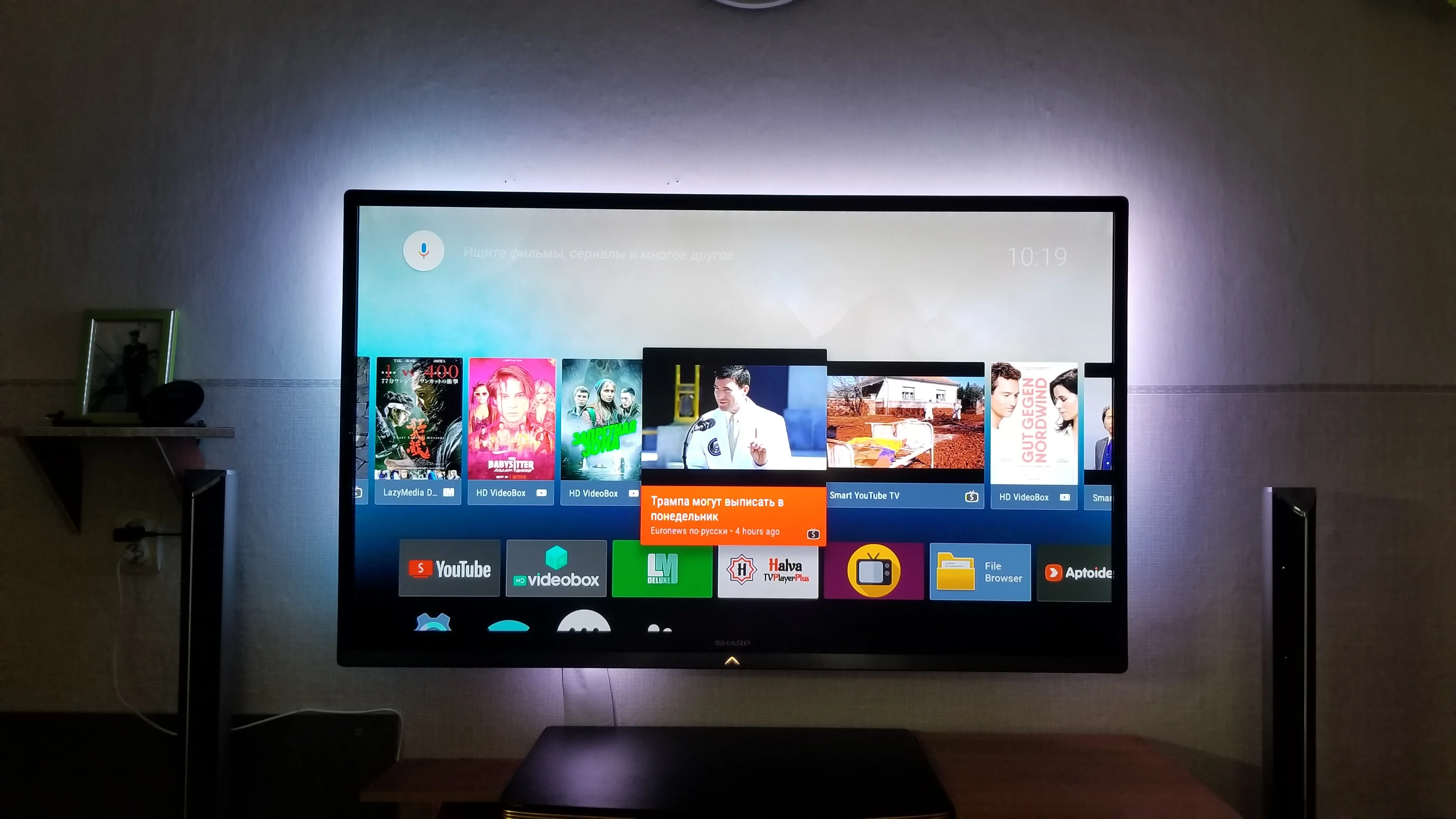

Everything works right, looks great. But, the settings are very knocked down, first upset, then 2 hours tuned and voila, all colors are transmitted as on TV. Immediately the color was not white and pink, yes all the colors were knocked down, the dark areas did not capture at all, the photo of my settings attached, may depend on the model TV, I have Sony kd65. I took 60 diodes, I like it. Connected corners, much faster and more convenient than soldering. 5 m was enough for 65 “, left cm 30. The kit is complete, there is everything you need, even special screws to TV, corners the seller gave. Works everywhere except TV (CAM module) and PS4, it is clear there HDMI. The delay is small, but not critical. 4K with working light brakes, lack of power, with 1080r no problems. It starts itself. The Ambilight app at the time of writing a review is worth 199R.
Emitting Color: 60 LEDs per meter Color: 5M kit Wattage: EU Plug
K***y –
The order came to the store Pyaterochka!!! Twelve days!!! Quickly passed the sky and three days on the Rasha. Everything works. I take it on the second TV. The only negative, this mail box. On the first may order, on the second packing from the first order.
Emitting Color: 60 LEDs per meter Color: 4M kit Wattage: EU Plug
E***v –
At first glance, everything is fine. The seller sent quickly, thanks to the seller.
Emitting Color: 60 LEDs per meter Color: 2M kit Wattage: EU Plug
A***v –
Все отлично. Не сразу начал работать на HD vedeobox и s.yiutube. Нужно ковыряться в настройках. Из минусов, достаточно резко меняются цвета, и получается эффект стробоскопа. На 55″ хватило 3,75м. Продавца рекомендую.
Emitting Color: 60 LEDs per meter Color: 5M kit Wattage: EU Plug
S***n –

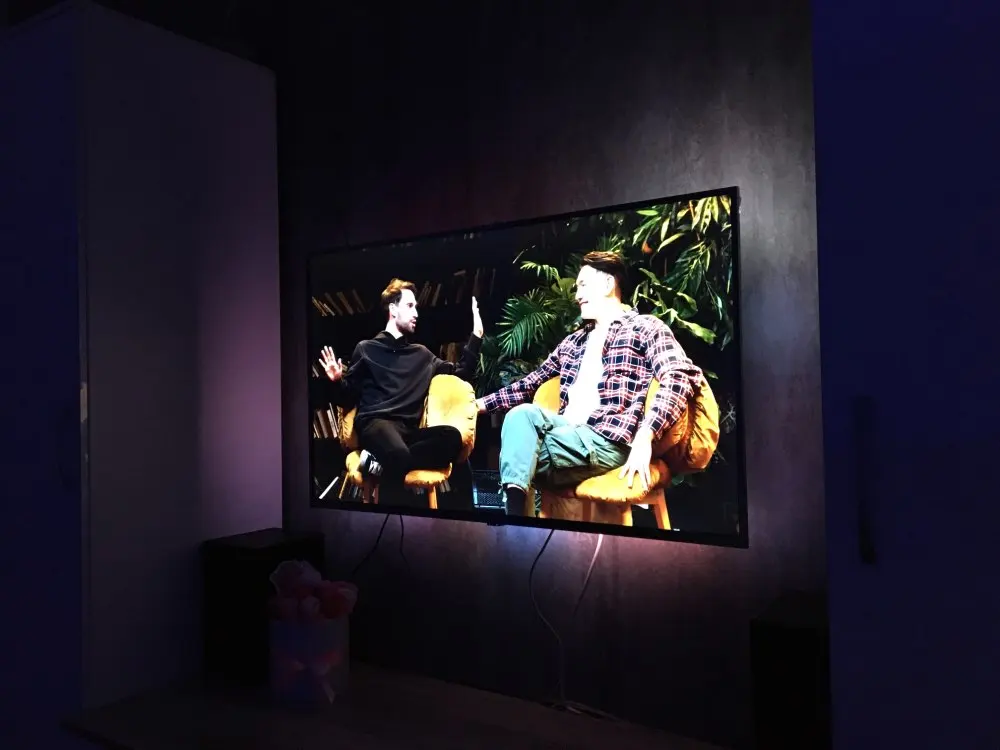

Delivery about a month in St. Petersburg. Surprisingly just mounted and configured. But remember this for Android TV or PC. The effect of using is amazing. The feeling that you are in the cinema, the subjective perception of the TV screen increases one and a half times.
Emitting Color: 60 LEDs per meter Color: 4M kit Wattage: EU Plug
M***n –
Софт конечно дикий, еле допер как и что не смотря на вроде бы имеющиеся инструкции, но в остальном все рабочее. Монтажить конечно пришлось попотеть с непривычки. Брал метровую ленту для 24 дюймового монитора. Хватило как раз на 3 стороны и именно это и нужно было. На днище у меня нет возможности нормально крепить. Для мониторов на 27 уже надо брать больше. В целом доволен. Заметил лишь некоторые рывки анимации окон в винде, видимо из за того что постоянно сканируется экран на цвет. Вообще пойдет. Смотрится даже в таком формате как у меня весьма симпатично, визуально увеличивая пространство.
Emitting Color: 60 LEDs per meter Color: 1M kit Wattage: EU Plug
M***O –
pas encore testé mais tout a l’air bon
Emitting Color: 60 LEDs per meter Color: 4M kit Wattage: EU Plug
R***v –
Это топ ребята. Но есть подводные кээээмни. Советую сначала подключить к пк и настроить через эмбибокс(если вам для андроида) потом уже кидать на телик. Светодиодов должно быть одинаково по бокам, и верх низ тоже. Приложение на андроид 200р. Если при включении горят не все светодиоды или один, это норм, сначала настройте и проверьте, что все работает. Кстати на русском ютубе нет Гайда именно под этот комплект, есть на английском, где чувак все объясняет, в поиске на англ вводите эмбилайт диайвай. В комплекте есть абсолютно все что нужно для подключения.
Emitting Color: 60 LEDs per meter Color: 4M kit Wattage: EU Plug
J***v –
Everything works, the kit is excellent, very fast delivery, the seller 5 stars. Recommend!
Emitting Color: 60 LEDs per meter Color: 5M kit Wattage: EU Plug
AliExpress Shopper –
Everything is fine! The weather has increased. In reality, it is useful only on the TV or at a very long landing from the monitor.
Emitting Color: 60 LEDs per meter Color: 2M kit Wattage: EU Plug
W***E –
Package well received within a correct period, a nice effect behind my computer screen, regarding the setting it is not very obvious fortunately there are tutorials on YouTube.
Be careful if you want to install it on a TV it is imperative that whatever under Android to install the driver!
Emitting Color: 60 LEDs per meter Color: 1M kit Wattage: EU Plug
R***v –

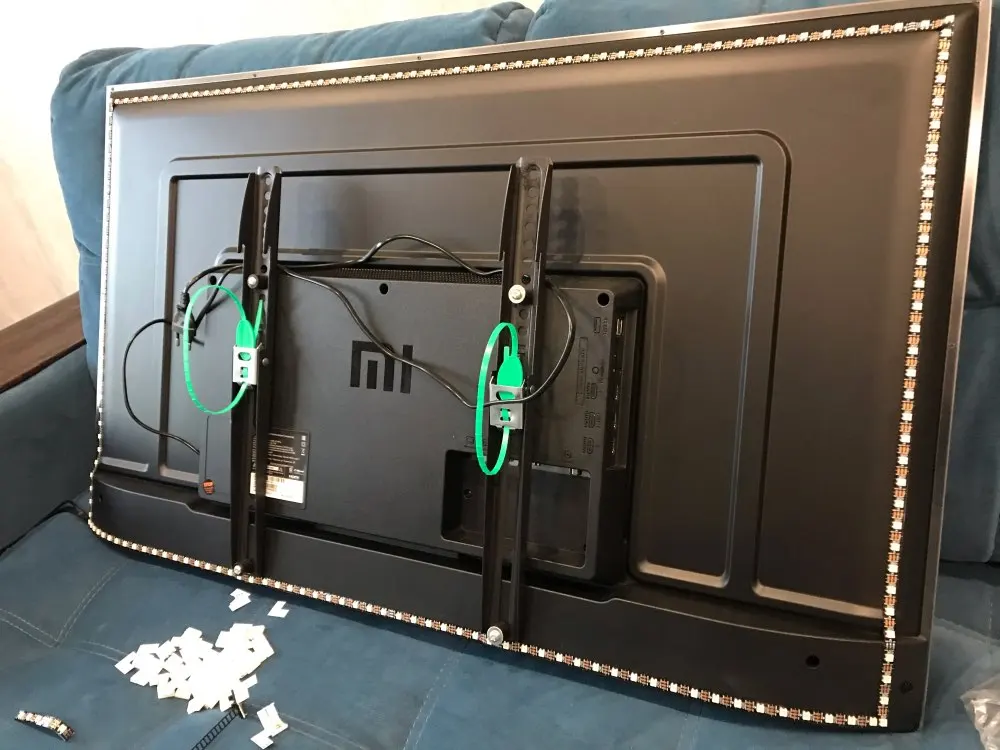

11 days from China to SPB. Thank you PR, nothing was broken. Xiaomi MiTV 55 everything works fine. 4 meters just right. Connection/configuration took two hours. YouTube, hdvideobox works, no movie search.
Emitting Color: 60 LEDs per meter Color: 4M kit Wattage: EU Plug
A***n –

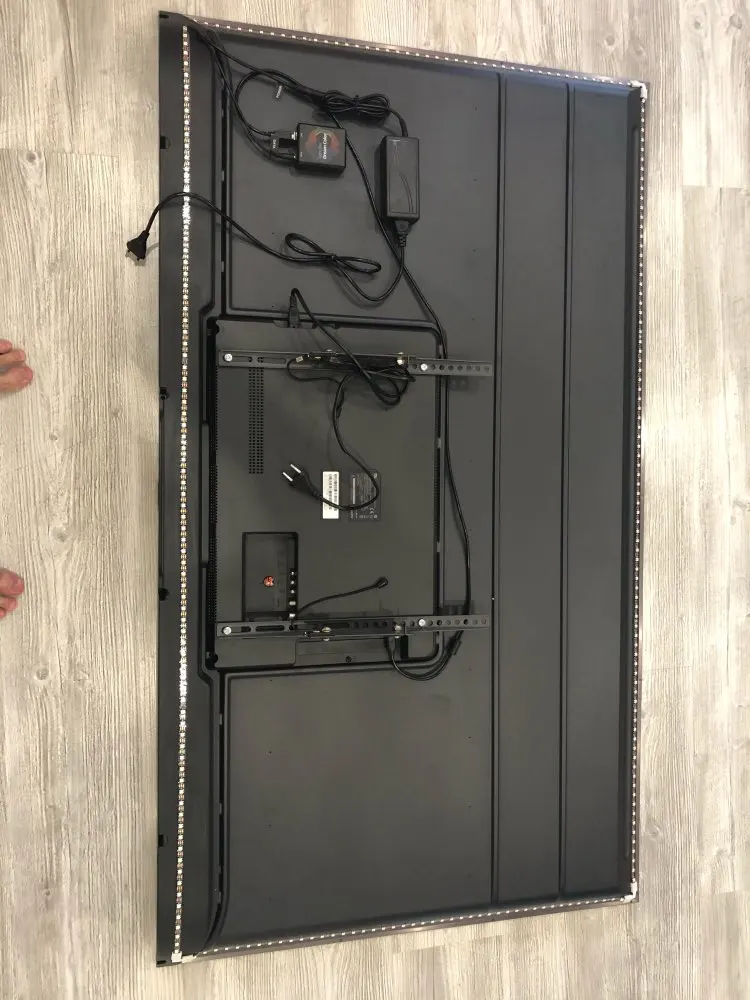

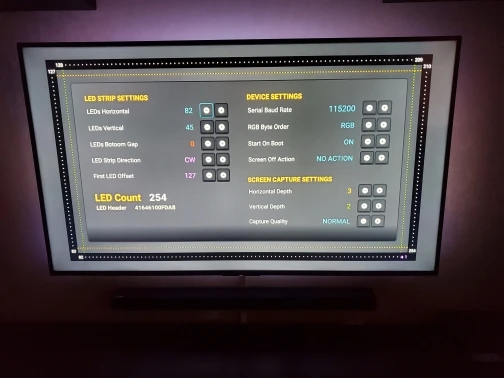

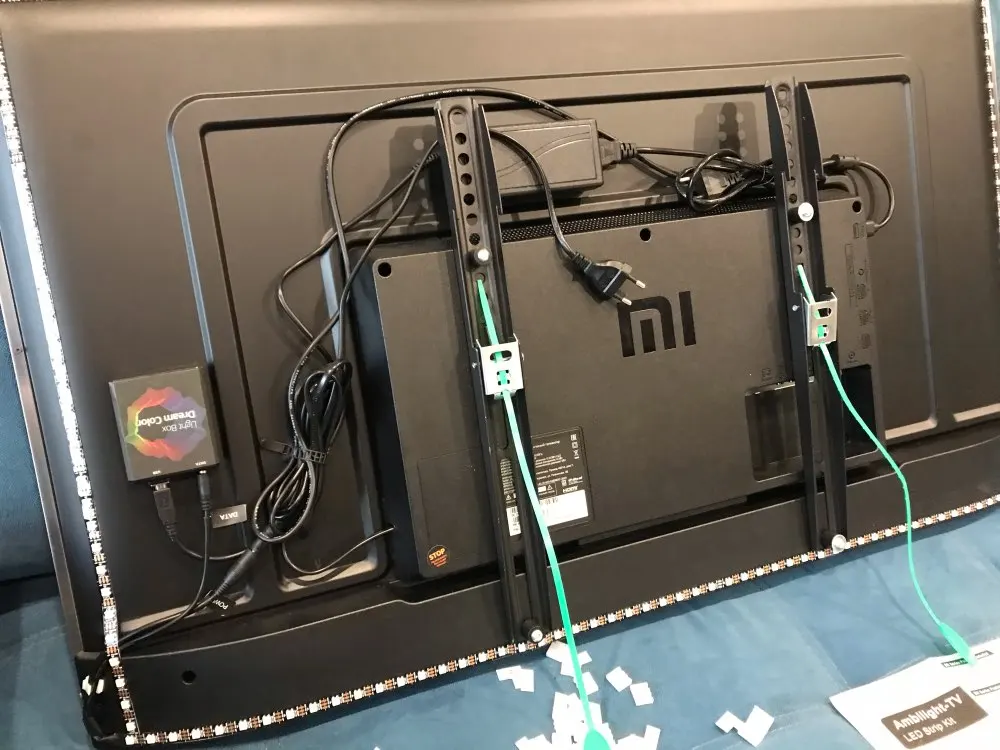

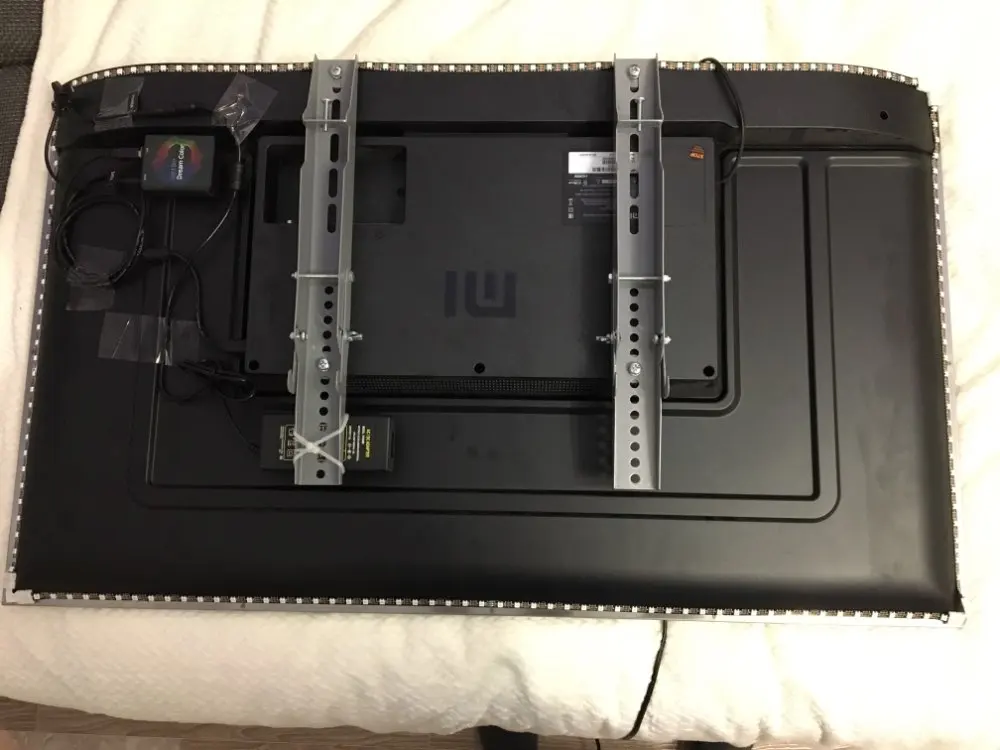

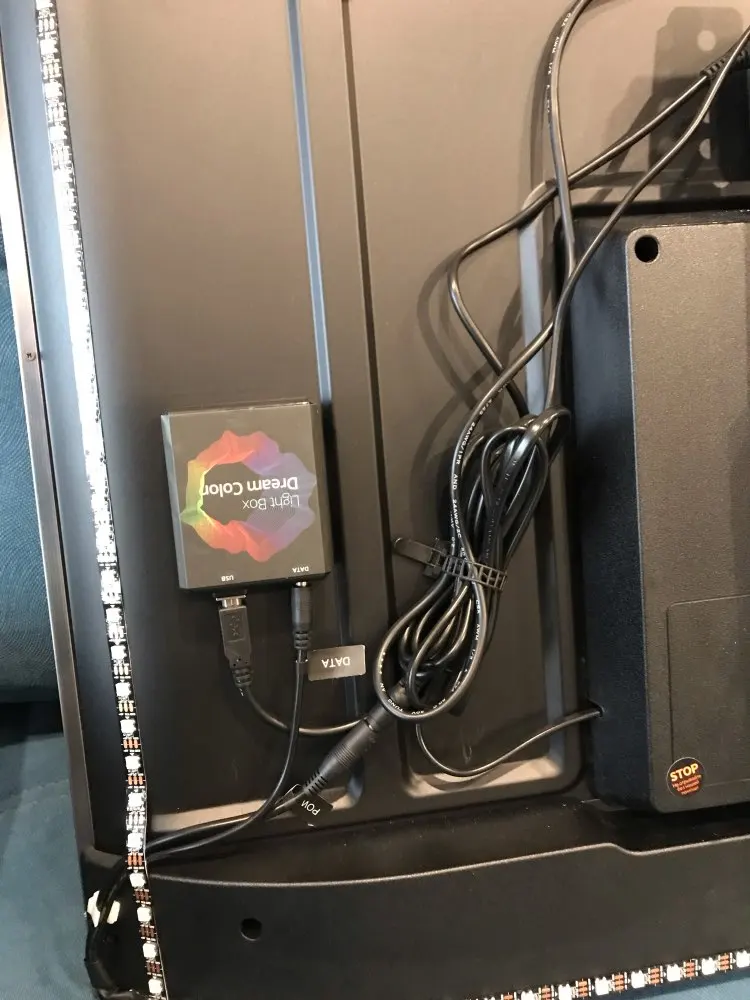

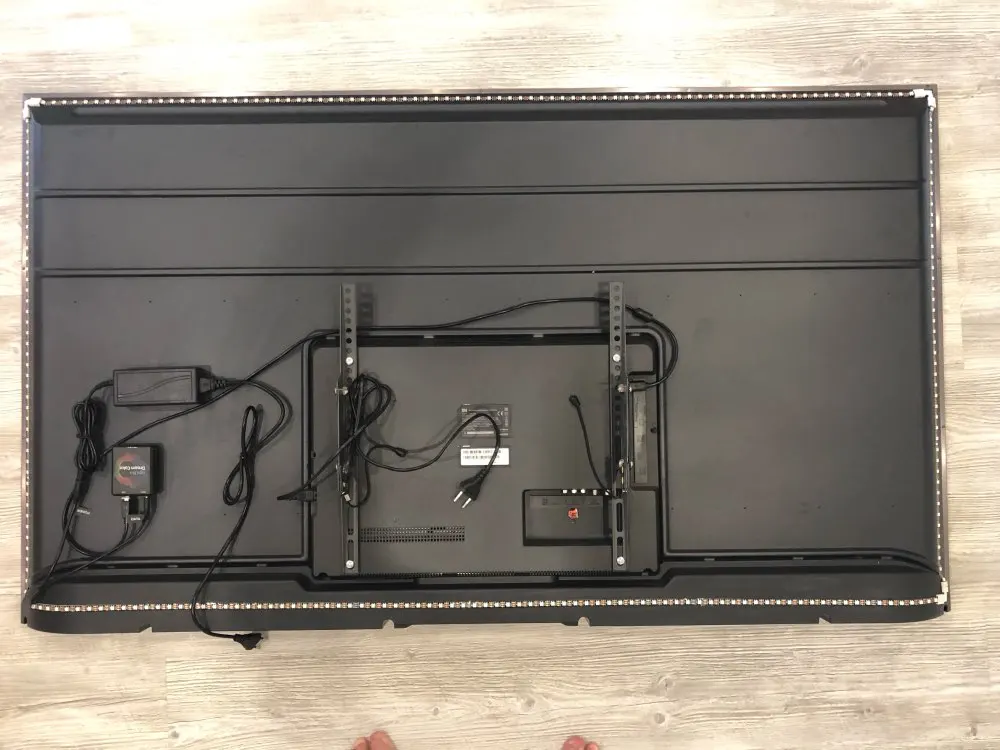

It was exactly 2 weeks. Installed in 30 minutes. With Xiaomi TV for 65 inches, everything works well. Took 5 meters! Horizontally it turned out 83 diodes vertically 45 diodes. The power supply is attached on 2-sided Scotch to the TV.
Emitting Color: 60 LEDs per meter Color: 5M kit Wattage: EU Plug
a***a –

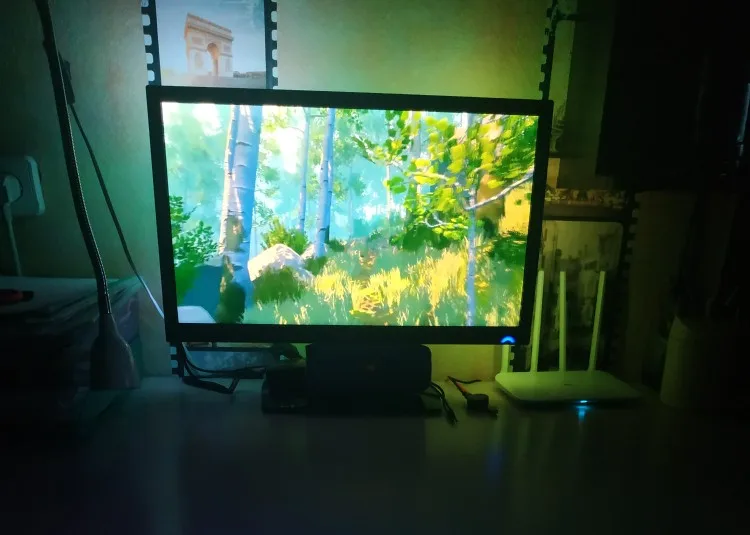

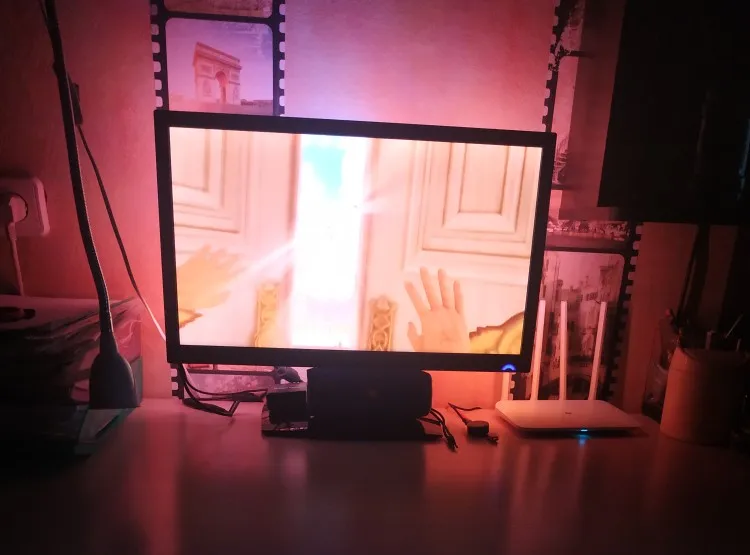

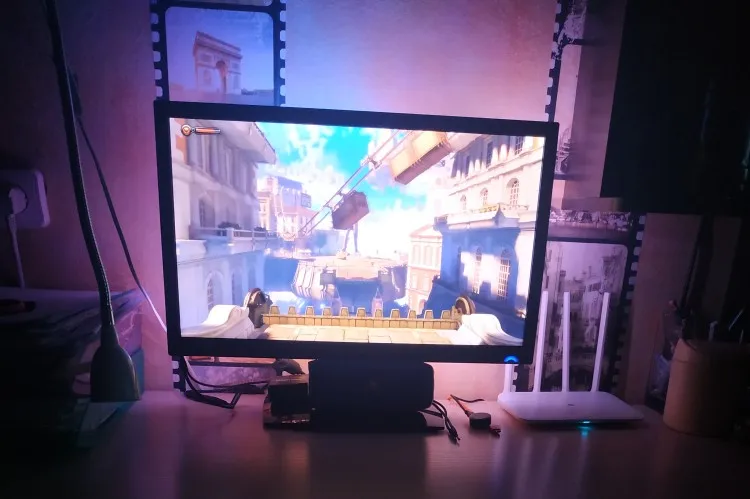

Delivered quickly, from payment to receipt for post-11 days, the set came in full, the tape was a little more than expected. The backlight is very bright, I use 20% brightness. Took 2 meters, 60 diodes per meter for 22 inches monitor. The effect of immersion in what is happening on the screen is multiples. I got it for games, I highly recommend to buy. I advise you not to change and take 60 diodes per meter, so the resolution of the backlight will become better and the overall effect will increase, 30 per meter is worth taking, if you buy for a TV, at a long distance the difference will not be strong. If you also want to use this backlight in games, then I advise you not to use ambibox, but prismatik, the last program has better performance in games, less computer resources consumes. The photo will not transmit the fullness of the sensations, look at YouTube examples of working backlight.
Emitting Color: 60 LEDs per meter Color: 2M kit Wattage: EU Plug
O***h –
Everything is very cool!!! I did not even expect such a cool effect!!!!! Recommend!!!!
Emitting Color: 60 LEDs per meter Color: 3M kit Wattage: EU Plug
R***r –
It came, but did not understand… You need to download the program and configure it! I’m afraid that shit…
Emitting Color: 60 LEDs per meter Color: 4M kit Wattage: EU Plug
a***u –
Shipping fast. The thing is cool, it connects easily. Works with everything that goes through Android TV set-top box. Recommend! Result in search on YouTube.com: Ambilight backlight TV with AliExpress
A little about everything…
Emitting Color: 60 LEDs per meter Color: 3M kit Wattage: EU Plug
M***t –

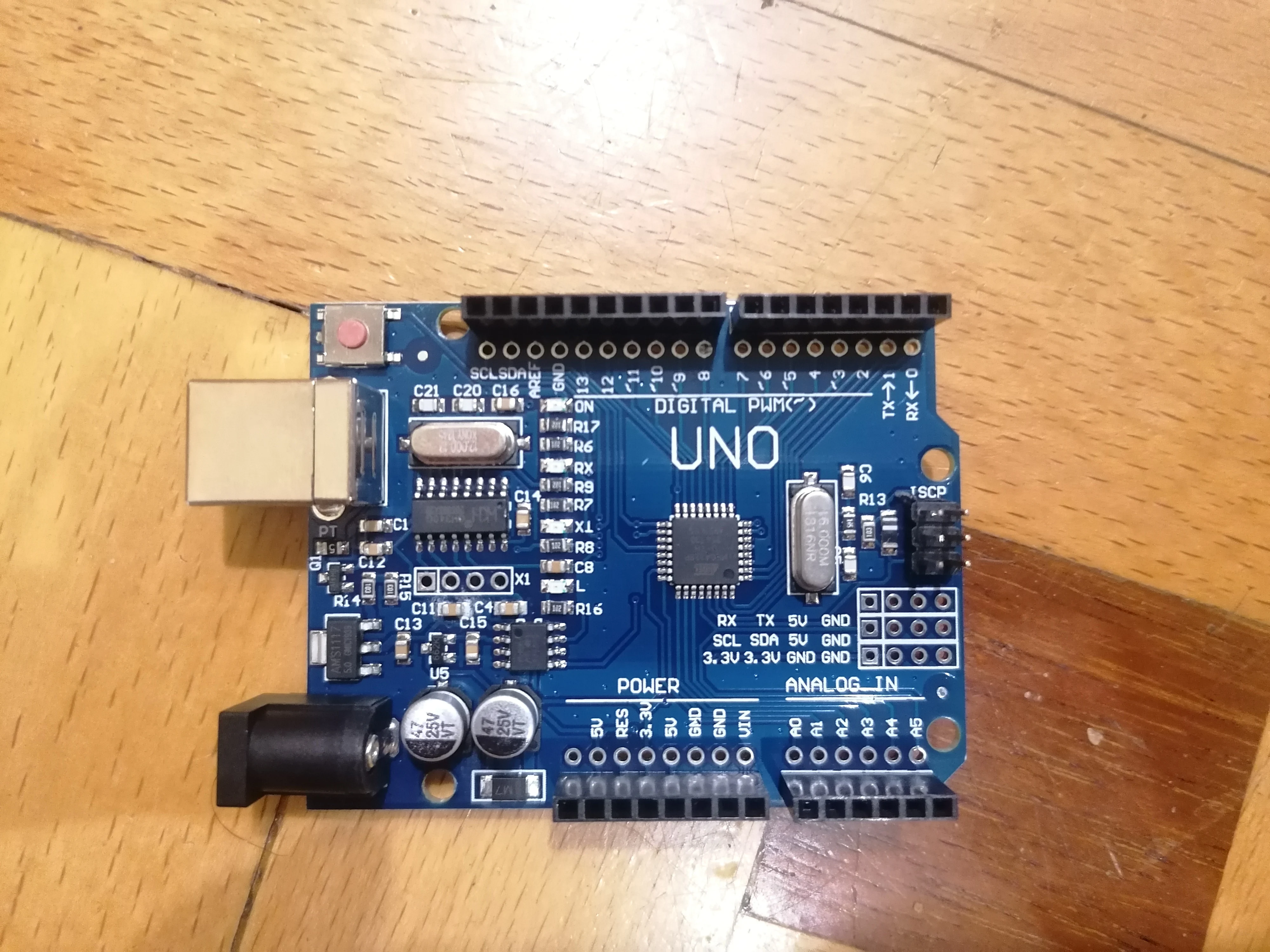

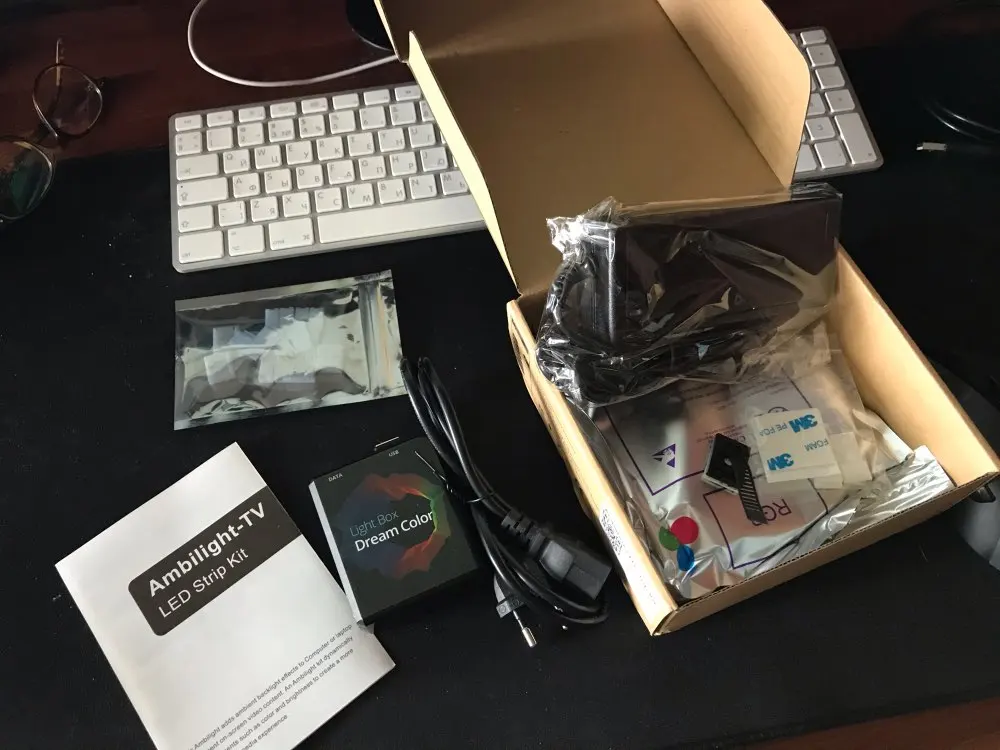

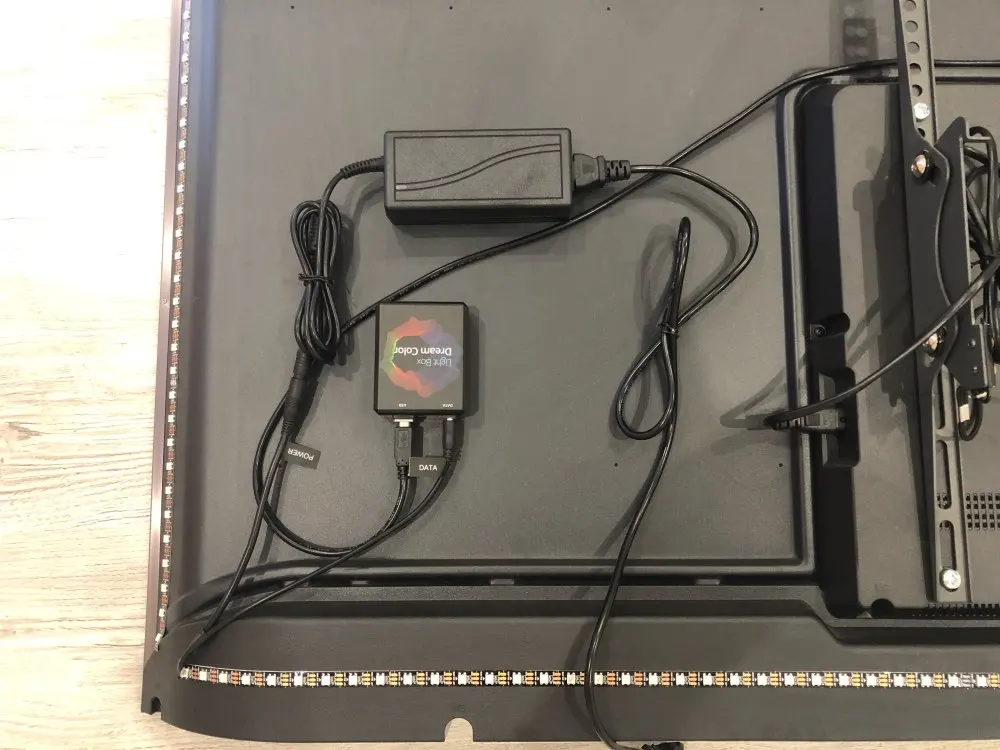

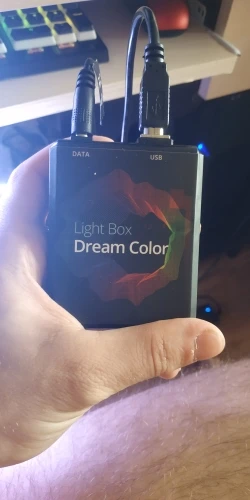

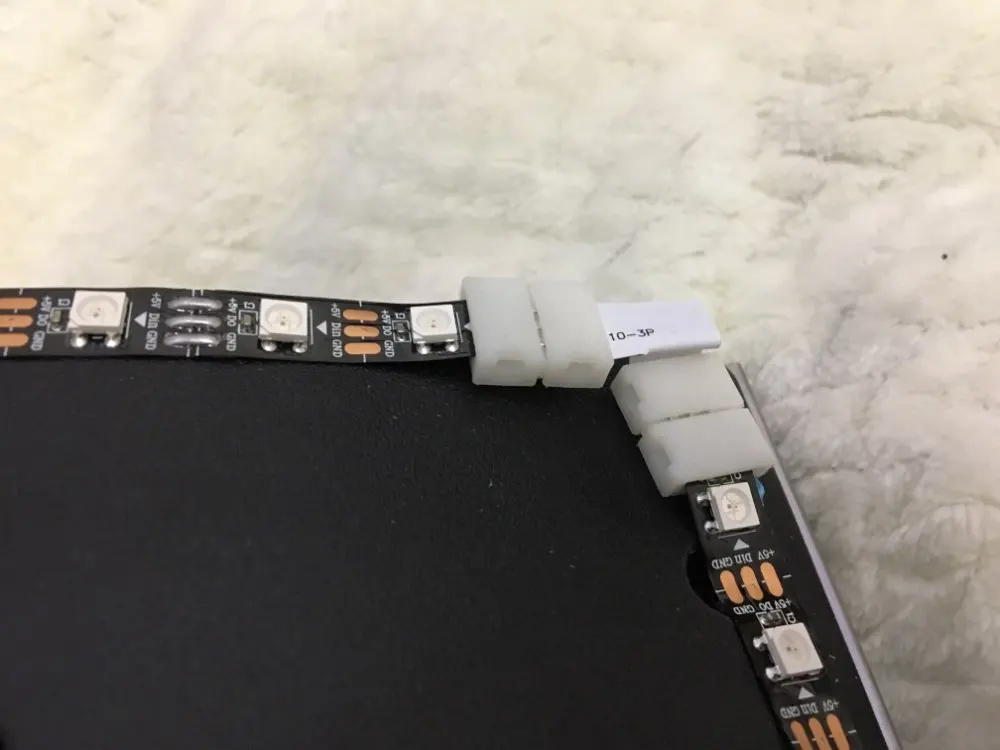

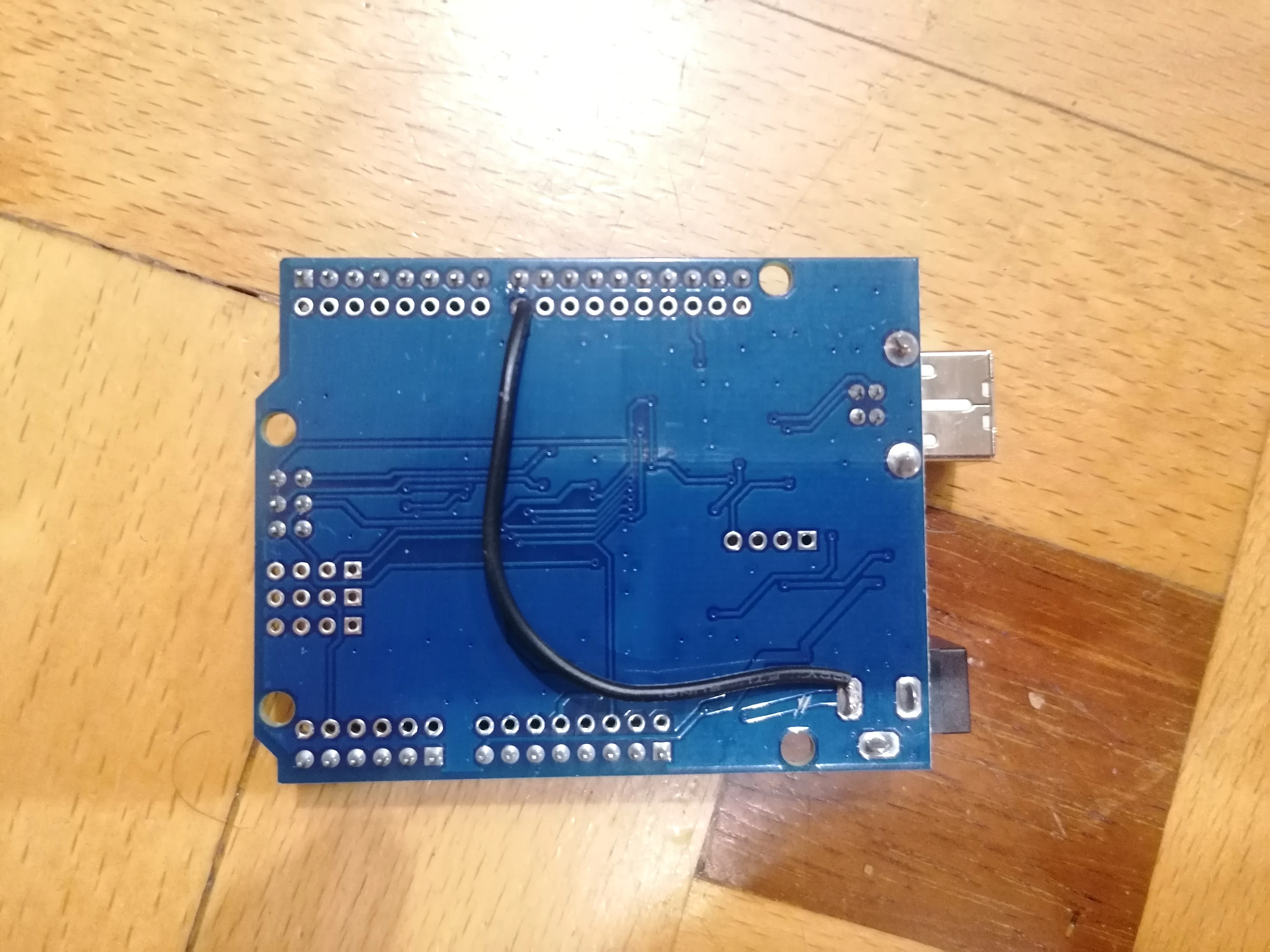

My past experience of highlighting the covenant alexgyver (he can watch the ambibox setting) from the tape, arduino and the soldering curve ordered to live for a long time, so I was interested in ready-made solutions. In general, it was pleasantly surprised by the adequate execution of this scheme: Arduino in the case, connectors for connection are signed, which makes the assembly intuitive, a small set of pieces of double-sided Scotch tape (I did not need it, but it can be useful), ready BP-you do not have to pick up yourself. I ordered together with corner adapters-it saves time and reduces the number of problem places unlike manual soldering. Of the minuses-the adapter with the terminals is large enough and at its length it takes a couple of lamps per side of the angle which could be there, but with the burning tape, these lenses are not visible. And do not buy more tape in case of jambs. In general, the goods are good, the seller is good.
Emitting Color: 60 LEDs per meter Color: 2M kit Wattage: EU Plug
D***h –
Put on 60 “bodies. 5 meters was enough with a margin. Do not forget to order the corners for the tape separately. It will be faster and easier to collect without a soldering iron. Installed the program ambient light application on TV console mecool M8s pro. The program is in English, but there is a manual for Russian. I went with the adjustment. HD videobox, smart YouTube TV, lazy media Deluxe, Fry! TV everything works fine, the rest through the browser-if you need it very much.
Emitting Color: 60 LEDs per meter Color: 5M kit Wattage: EU Plug
P***V –
Everything works. For 47 inches took 3 meters with a density of 60 LEDs per meter. Made 4 zones: top and bottom by meter (60 pieces of LEDs each), on the sides of 50 cm (30 pieces of LEDs), only enough. For large diagonal (more than 47 inches) TVs need to take more than 3 meters or make only 3 zones (on top and sides)
Emitting Color: 60 LEDs per meter Color: 3M kit Wattage: EU Plug
