Wifi Good Water/Gasoline Boiler Thermostat Tuya Distant Management Backlight Weekly Programmable LCD Contact Display Temperature Controller

Be aware:

Mannequin: BHT-600-GC Don’t embody Wi-Fi Operate.

Mannequin: BHT-600-GCLW Embrace Wi-Fi Operate.

Sensor isn’t included for GC. If wanted, select sensor additionally.

Mannequin Definition:

[BHT-6000-GC]: Water/Gasoline Boiler 3A

[BHT-6000-GCLW]: Water/Gasoline Boiler Wifi Voice Management 3A

Modbus or RS485 is Optionally available. If wanted, contact us.

On Performance

1. Highly effective Capabilities Are Accessible Corresponding to BACnet/Modbus/Wifi and so on.
2. 0.5℃ Accuracy Retains temperature inside the degree you set
3. Knowledge Reminiscence when energy is off 4. 5+2 Six durations Programmable Maximize Consolation and Economic system

Technical Knowledge

Sort: Water Gasoline Boiler
Sensor: NTC, 10K
Accuracy: ±0.5℃ or ±0.1℉
Set Temp. Vary: 5-35℃
Room Temp. Vary: 5-99℃
Energy Consumption: ＜1.5W
Timing Error: ＜1%
Energy Provide: 95-240VAC, 50-60Hz
Present Load: 3A( water/gasoline boiler)
Shell Materials: PC+ABS(Flame retardant)
Ambient Temp.: 0-45℃, 5-90% RH (non-condensing)
Storage Temp.: -5-45℃
Set up Gap Distance: 60mm
Safety Stage: IP30
Buttons: Capactive Contact Buttons
Wire Terminals: Wire 2*1.5mm² or 1*2.5mm²

Packing Record

Thermostat x1 + Screw x2 + English Handbook x1
Sensor isn’t included for GC. If wanted, select sensor additionally.

What He Can Providing

1. [Energy Saving]: Low consumption and vitality saving. Allow you to lower your expenses
2. [ Program]: Thermostat works mechanically throughout holidays in programmable mode.
3. [Kid Lock]: Children lock operate keep away from children mis-operate the thermostat
4. [Dual Sensor]: Built-in Sensor to measure air temperature
5. [Memory]: Constructed-in Battery, setting might be restoration even slicing electrical energy or energy failure

INSTALLATION

Your thermostat is appropriate foe set up inside a regular 86mm pattress field or European 60mm pattress field
Step 1. Hold energy off. See Fig 1

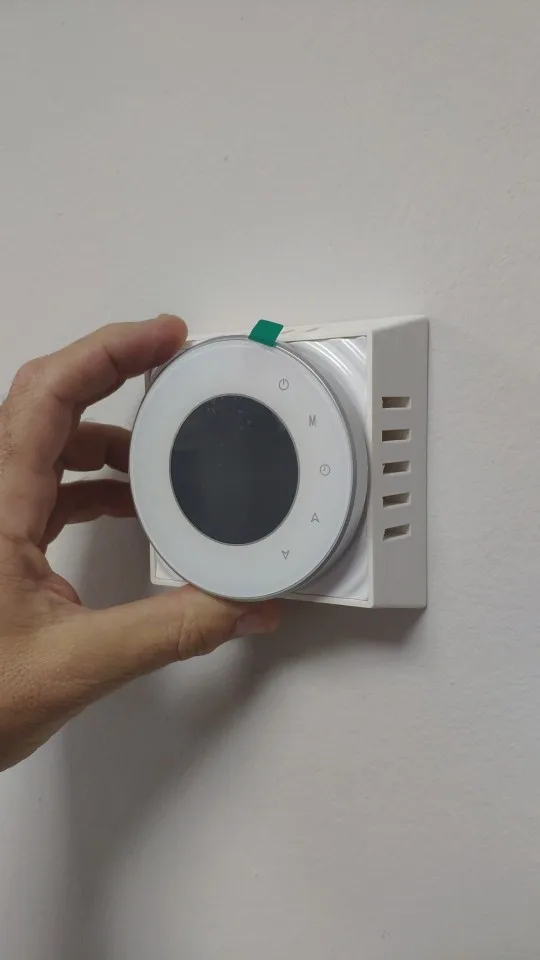

Step 2. Take away the mounting Plate by rotating the LCD half. See Fig 2.

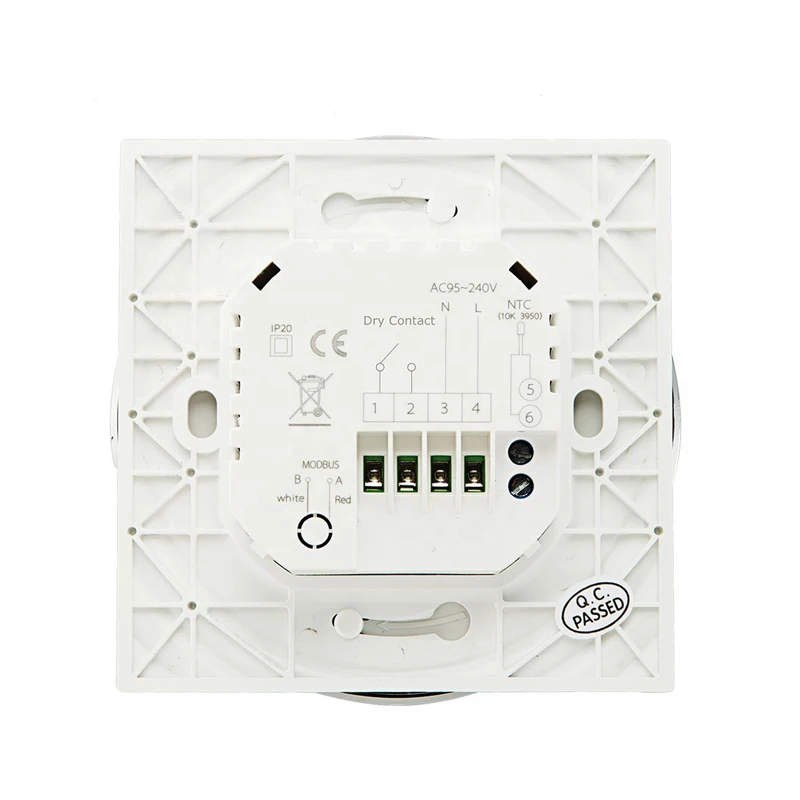

Step 3. Join energy provide, load into the suitable terminals. (see “Wiring your thermostat” for particulars and Fig 3).

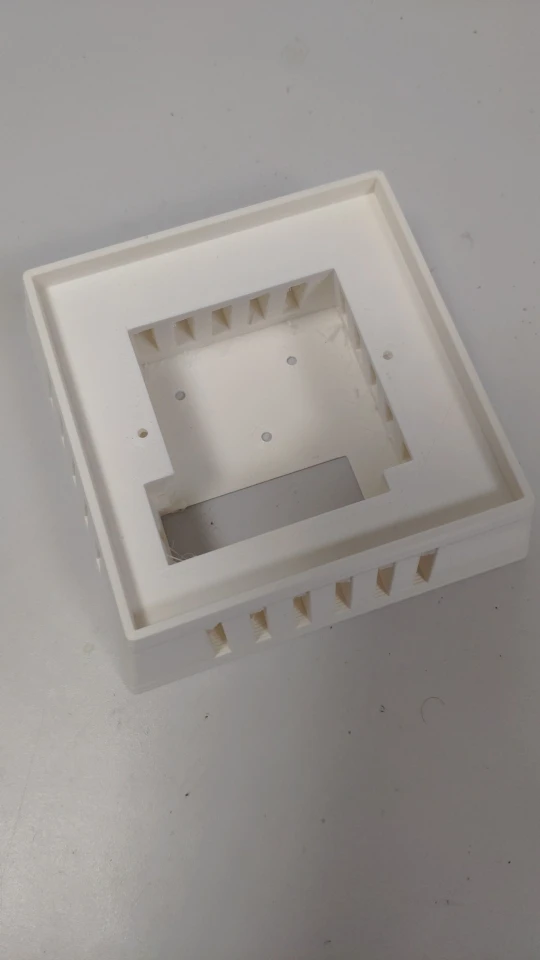

Step 4. Repair the mounting plate into the wall with screws within the field. See Fig 4.
Step 5. Fasten physique of the thermoatat and the mounting plate by means of rotating. See Fig 5.
Step 6. Set up full. See Fig 6.
